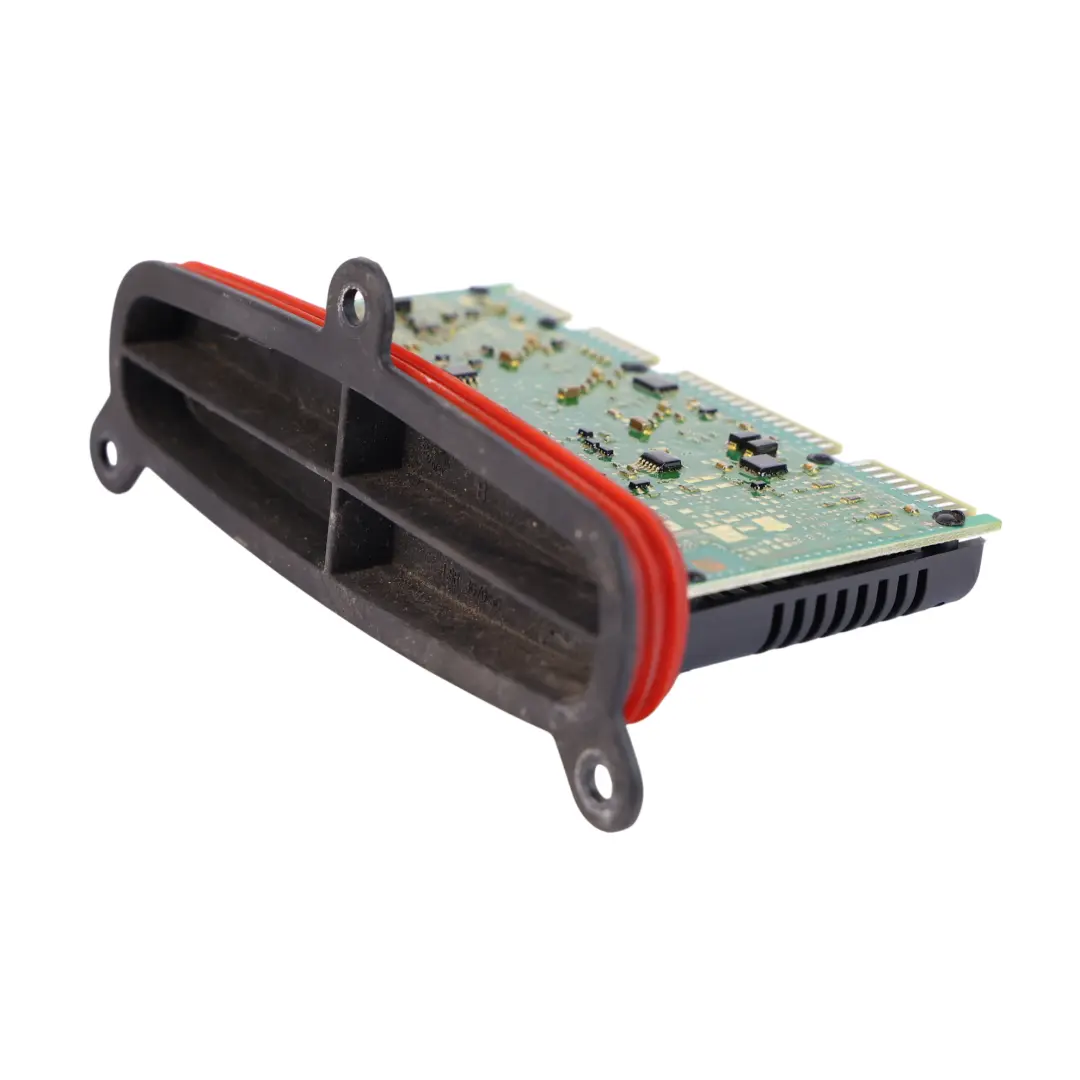

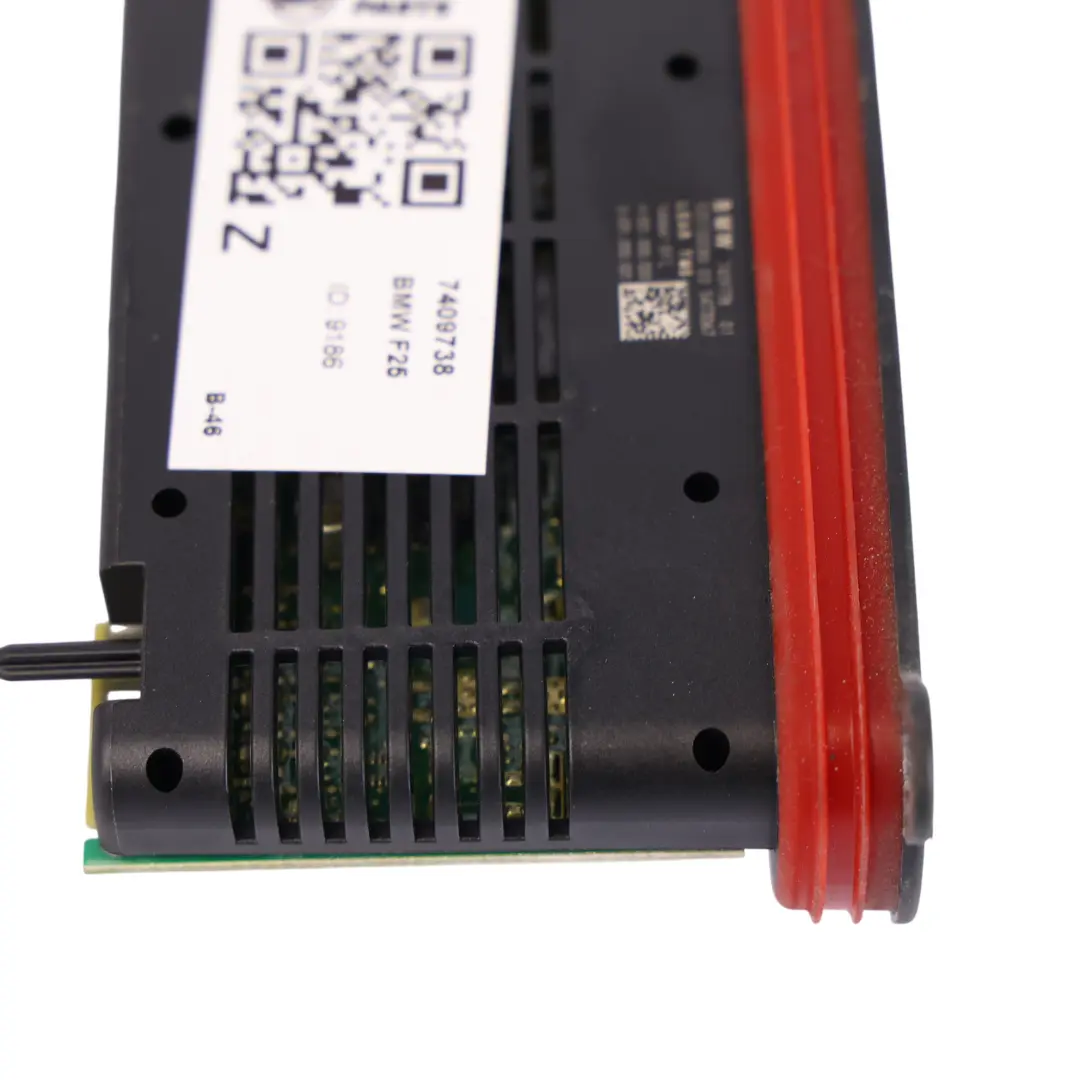

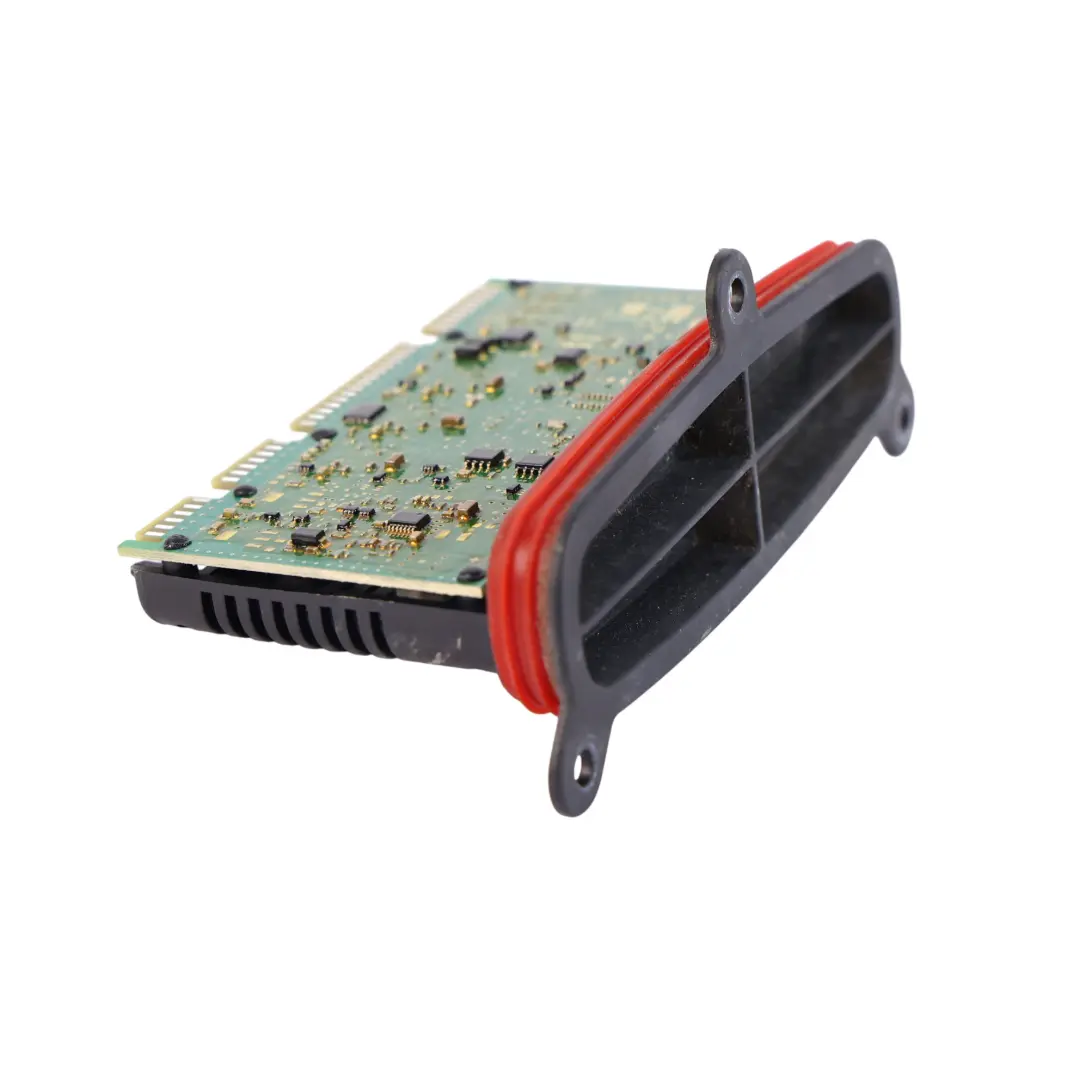

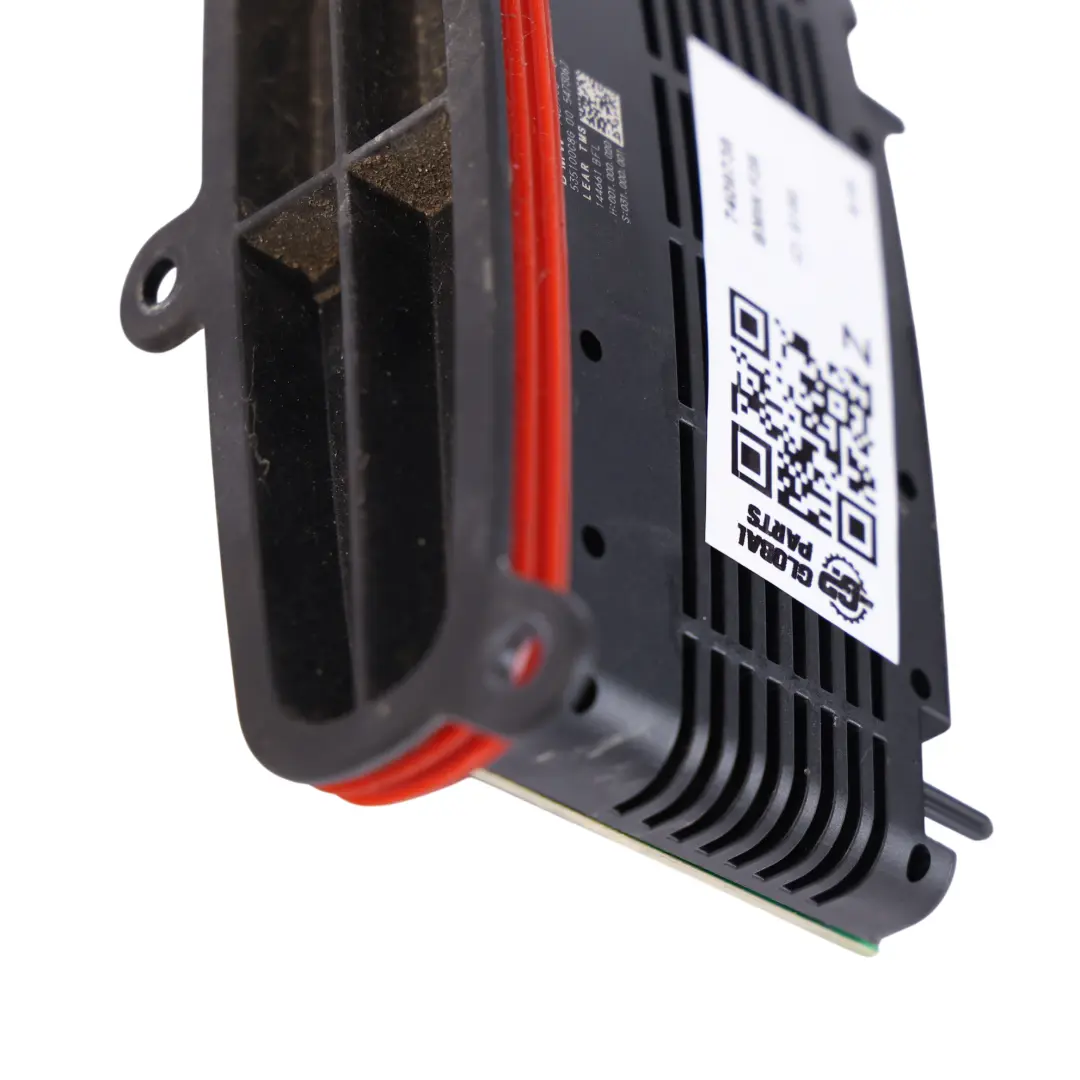

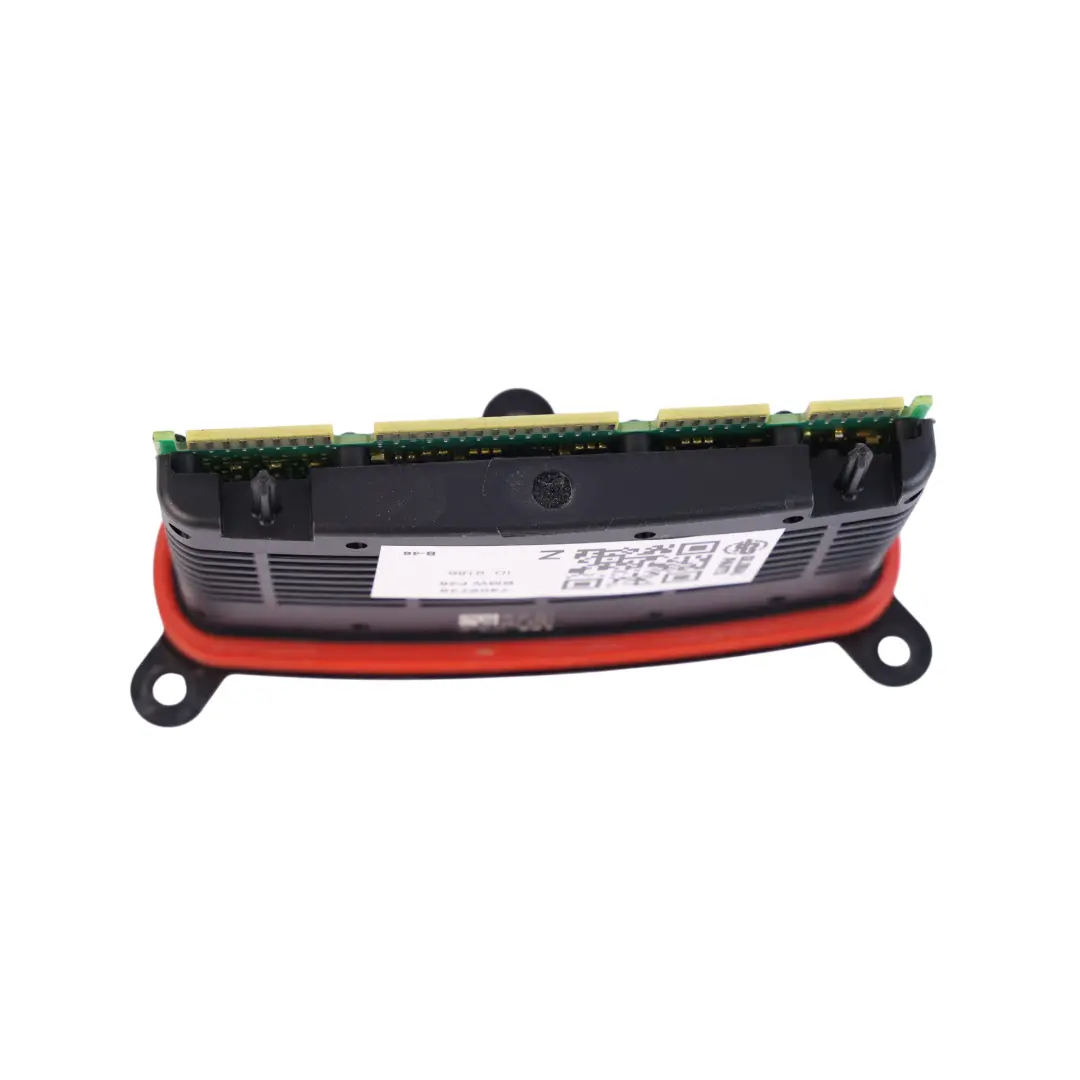

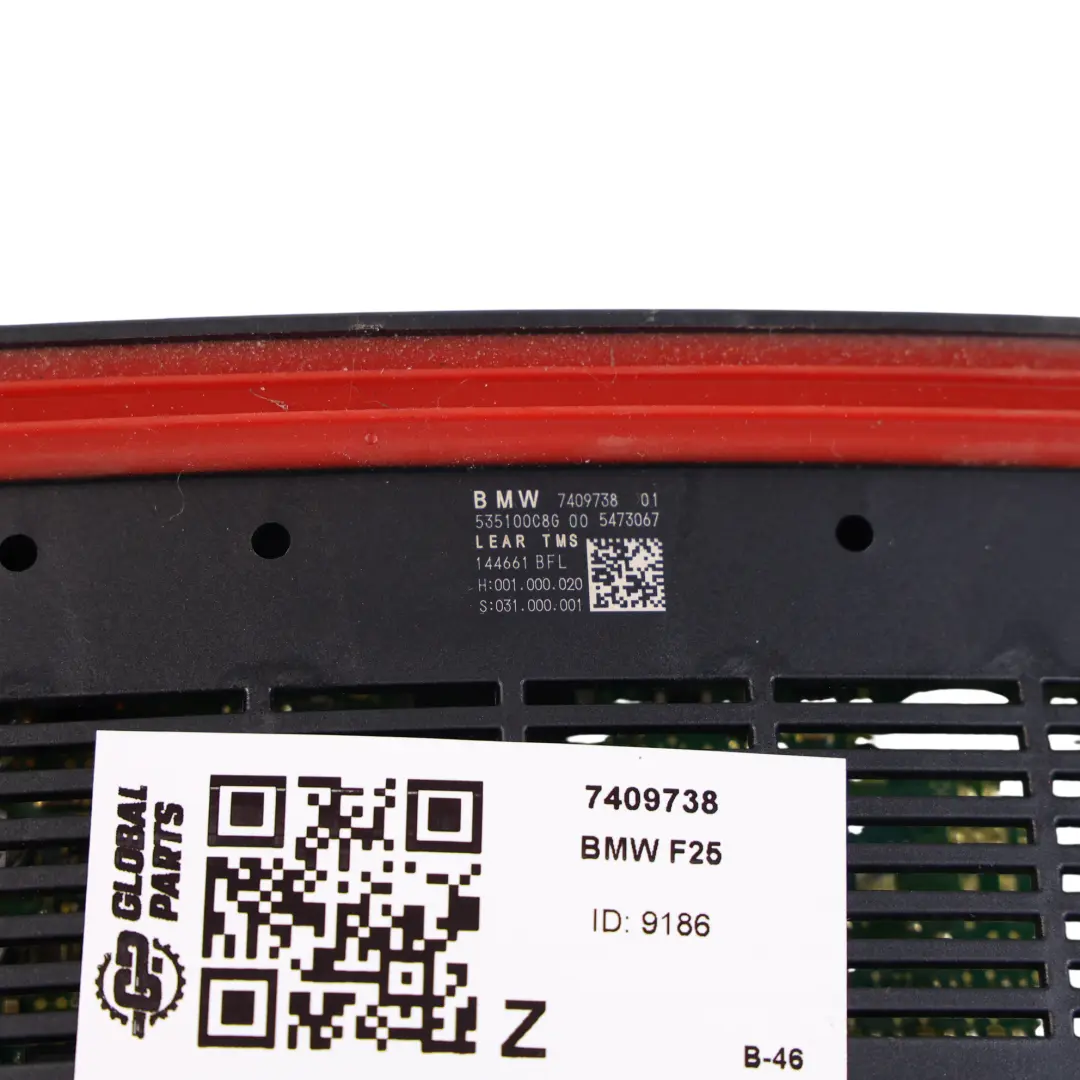

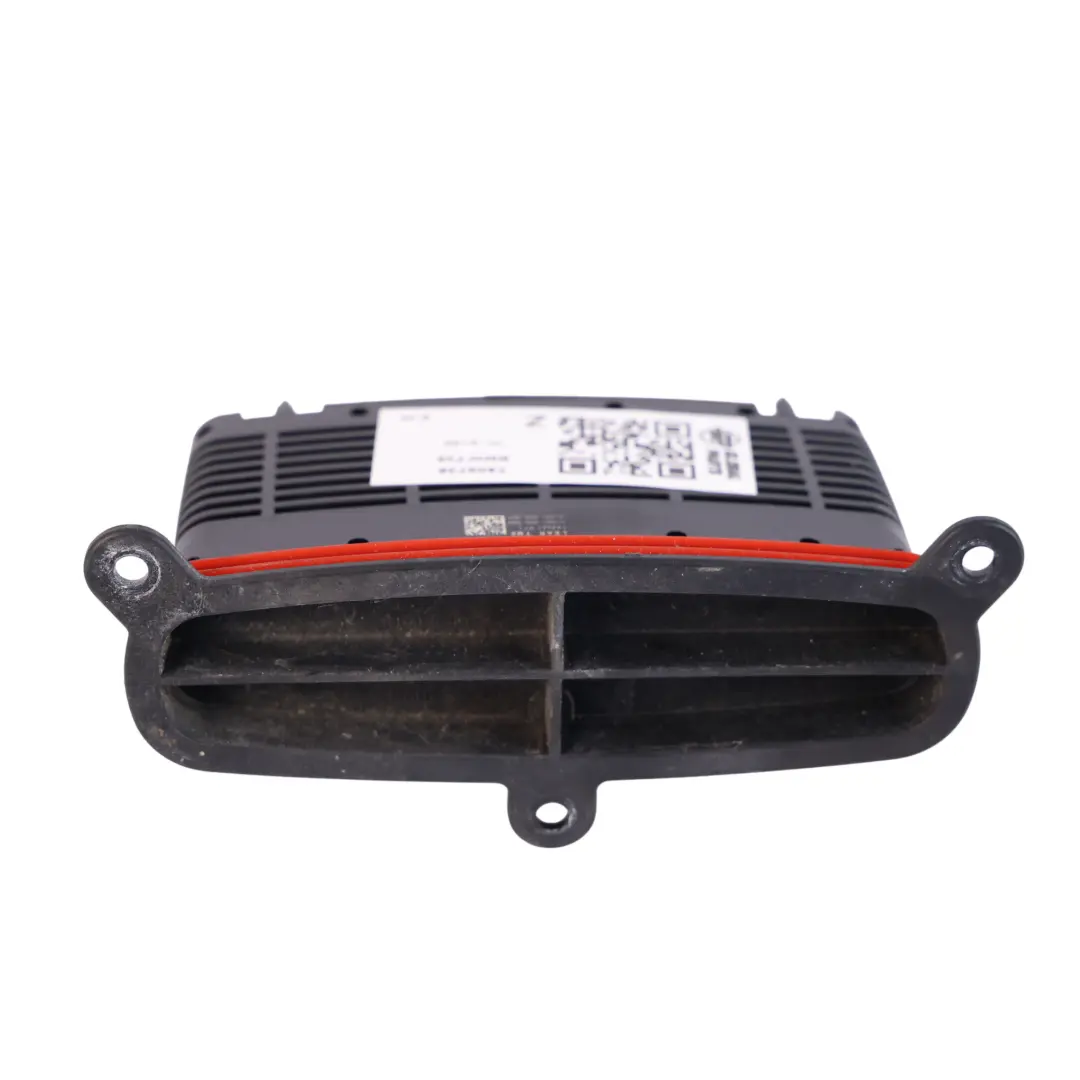

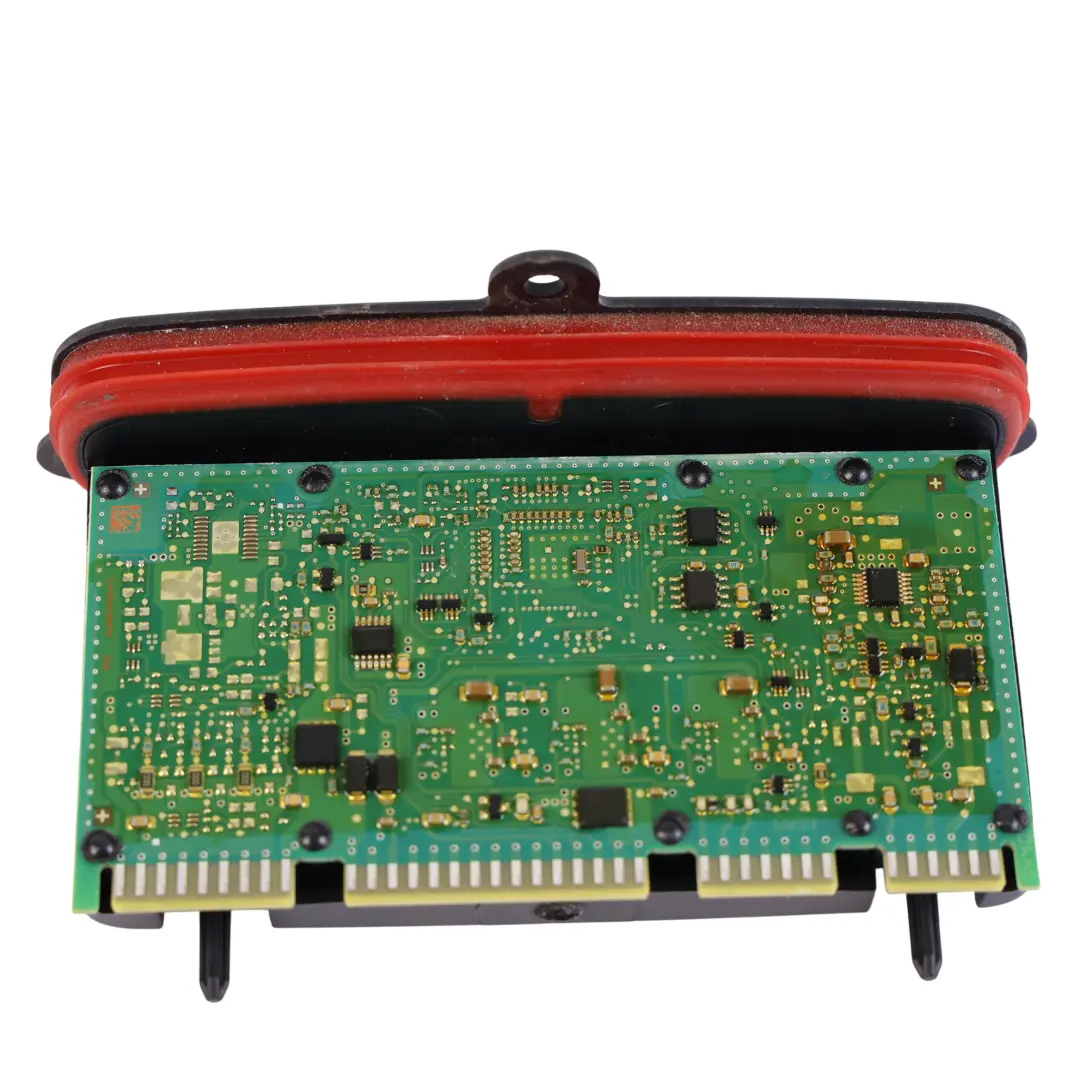

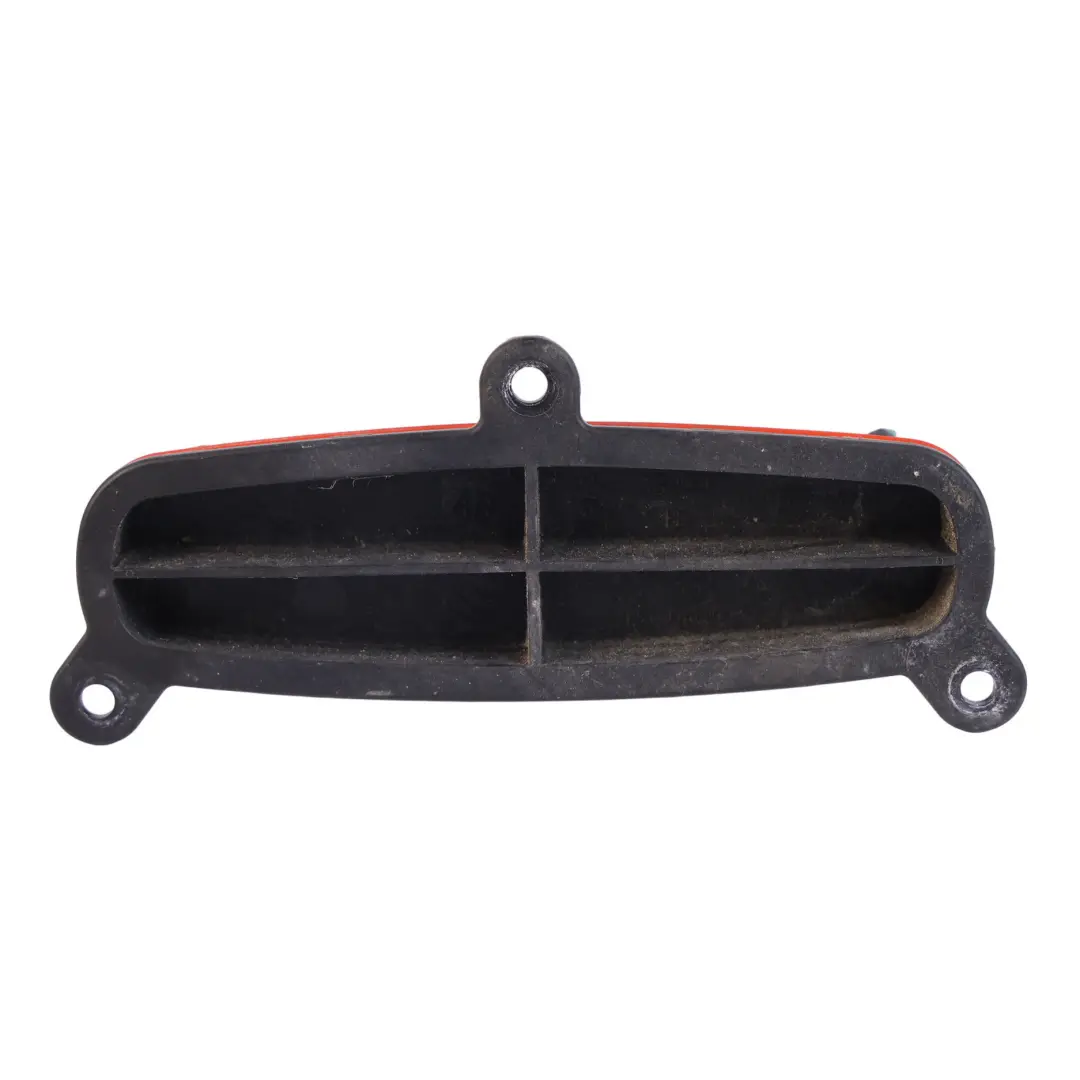

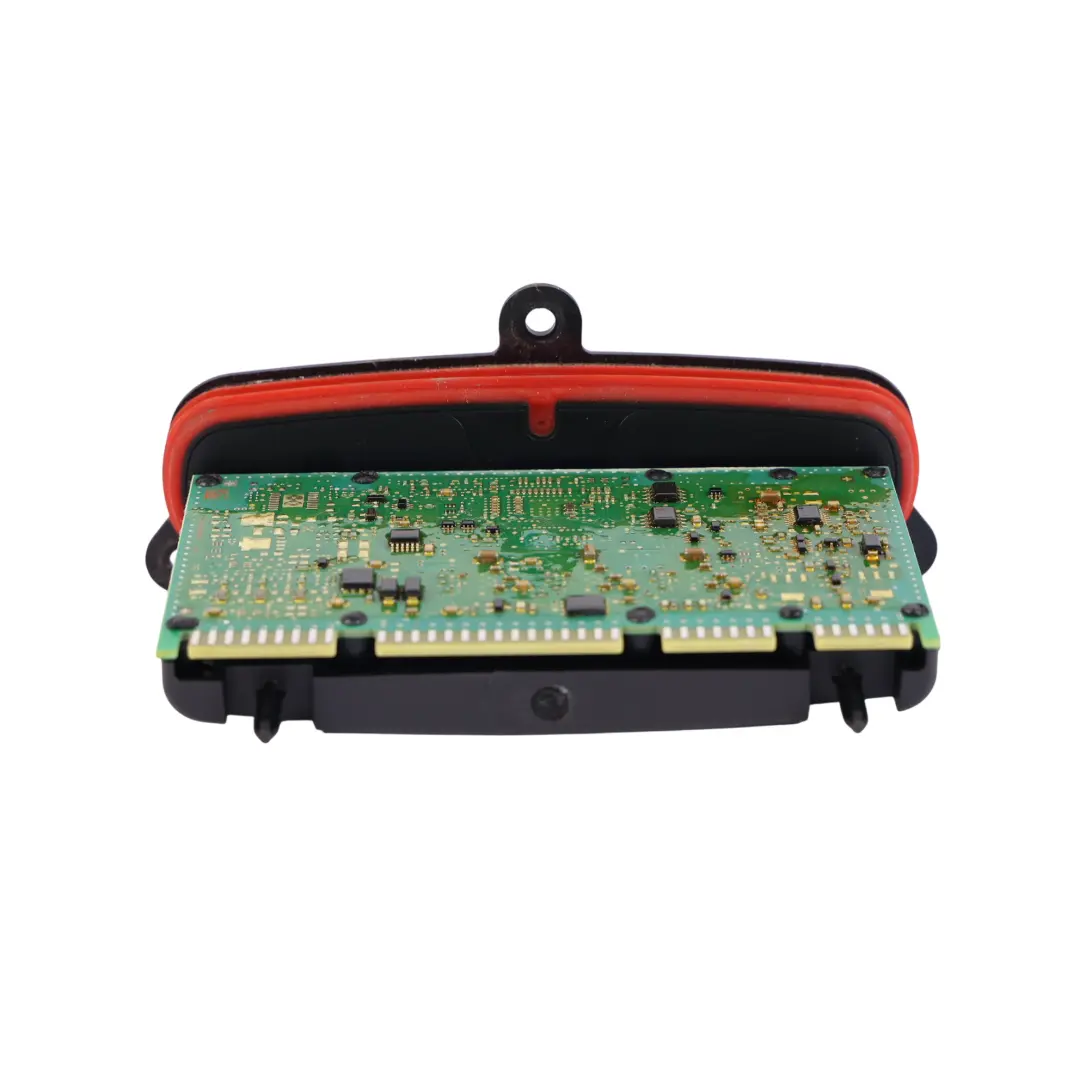

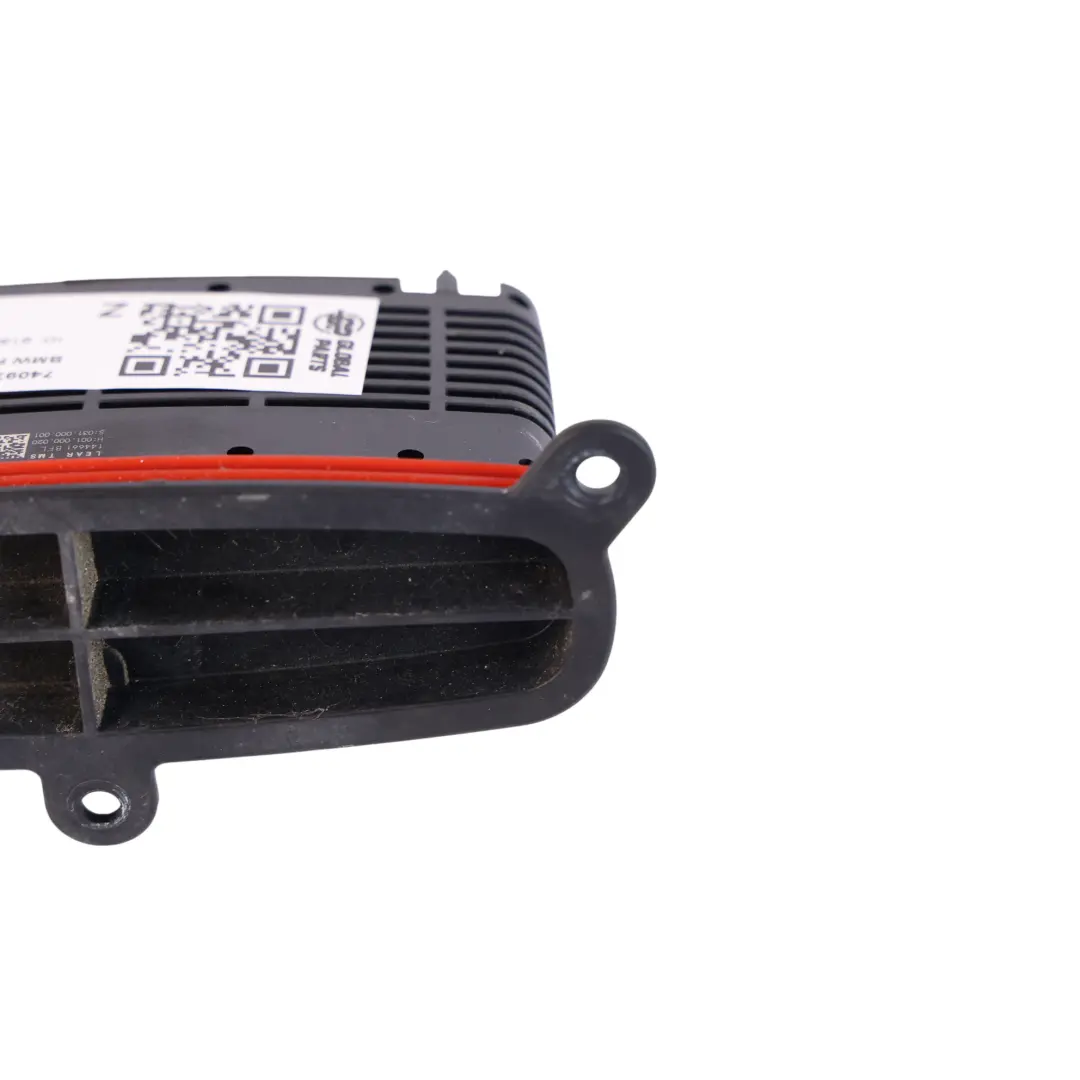

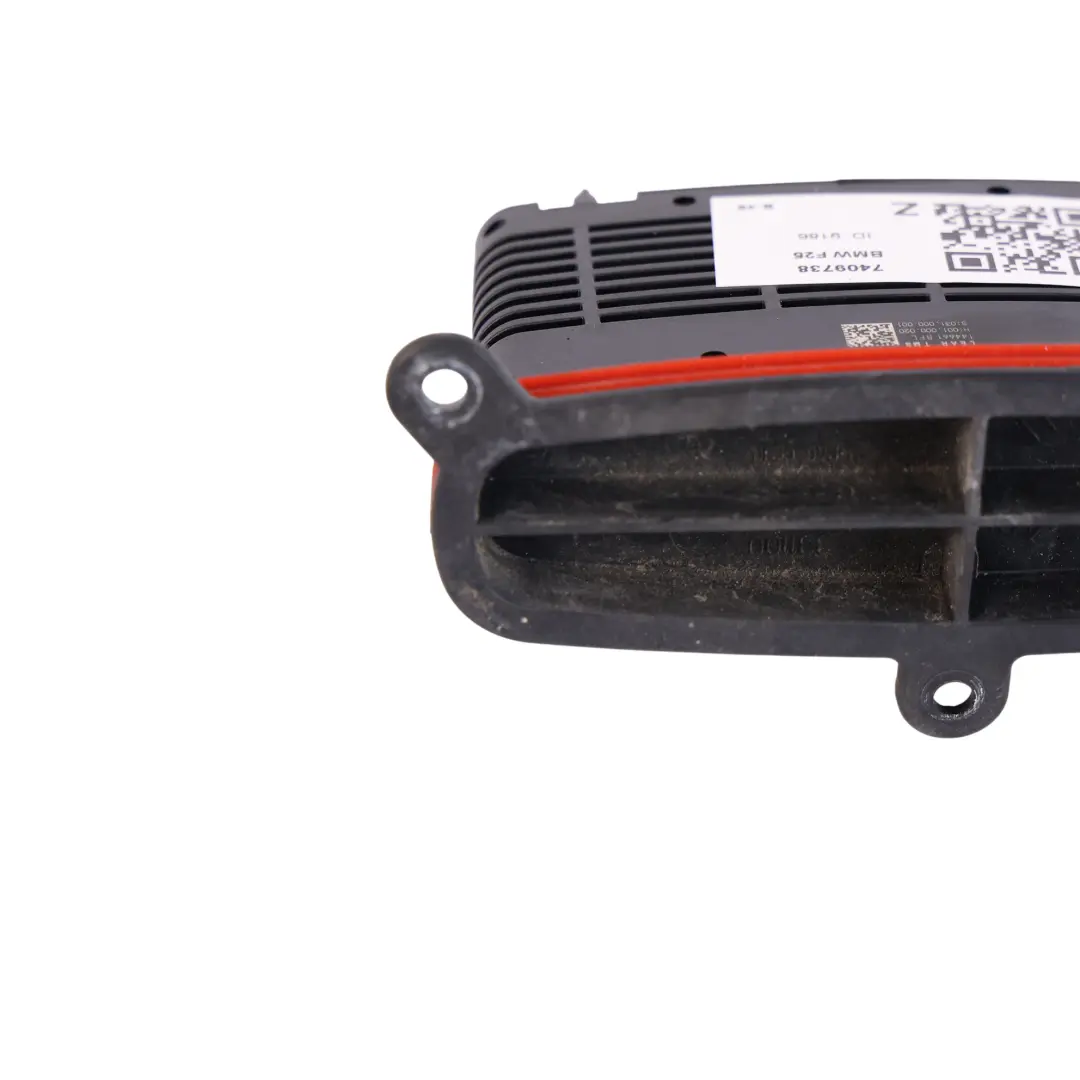

BMW X3 F25 Adaptive Headlight Xenon AHL Ballast Control Unit Lear TMS 7409738

The BMW X3 F25 Xenon Adaptive Headlight Module Lear TMS is a specialized component of the front lighting system, responsible for the precise control of xenon headlights with the AHL adaptive function. This electronic module ensures stable operation of the lighting system, improving visibility and driving comfort after dark and when cornering. Thanks to the use of original BMW and Lear technology, the part maintains high compatibility with the factory installation, which facilitates service and diagnostics.

Specifications and technical data

• SKU: 7409738
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7409738
• Substitutable numbers: 7409738, 63117409738, 7440882, 63117440882, 7408427, 63117408427, 7427615, 63117427615
• Location on the vehicle: Front
• Category: ECUs & Computer Modules

Module Purpose and Function

The presented module is designed for installation in the front of the BMW X3 F25 vehicle, within the xenon headlight with the AHL adaptive function. It is responsible for controlling the headlight's operation, including:

• coordinating the headlight's turning motion based on the vehicle's trajectory,
• proper power supply and control of the xenon burner,
• communication with other vehicle control units within the adaptive lighting system.

Thanks to this, the lighting system maintains correct operating parameters, and the driver receives stable, predictable road illumination in various conditions.

Technical Characteristics and Vehicle Integration

The module belongs to the group of Electronic Control Modules and Controllers, which means it communicates with the vehicle's communication bus and other control units responsible for driving safety and comfort. The Lear TMS design is optimized for:

• precise interaction with vehicle sensors (including steering angle, speed),
• stable operation in variable temperature conditions within the headlight housing,
• maintaining factory lighting parameters and AHL system response.

Proper adaptation to the BMW X3 F25 installation reduces the risk of errors in the lighting system and simplifies post-installation configuration.

Benefits of Using an Original BMW Module

Using a module that complies with the factory BMW specification brings tangible operational benefits:

• Consistency with Vehicle Electronics – the controller is designed to operate within the specific BMW system environment, reducing the risk of conflicts with other systems.
• Restoration of Factory Light Characteristics – maintaining the correct operation of the turning and adaptive functions enhances safety during night driving.
• Easier Diagnostics – the module works with factory service tools, making it easier to read errors and perform calibration if necessary.

This solution is particularly beneficial for users who want to maintain a consistent, near-factory operating characteristic of the lighting system in their BMW X3 F25.

Condition, Origin, and Practical Application

The offered part is used, allowing for economical repair of the lighting system while maintaining original BMW specifications. This type of module is suitable for situations where:

• the control unit has been damaged due to headlight failure or water ingress,
• errors related to the operation of adaptive xenon headlights appear in the system,
• the control cassette needs replacement after a collision or intervention in the lighting system.

Selecting the correct module for a specific vehicle configuration is facilitated by manufacturer markings and reference numbers available in the technical specifications.

Maintaining the Factory Character of a Premium Brand

In premium vehicles such as the BMW X3 F25, maintaining the consistent operation of electronic systems directly impacts the driving experience and the perceived quality of the car. Appropriately selected, original control modules – both in BMW and other premium segment brands – allow the vehicle's character to be maintained in line with the manufacturer's intentions. If you are interested in a broader context of using original parts in premium cars, it is worth reading the article: how used OEM parts help maintain the character of premium cars.
