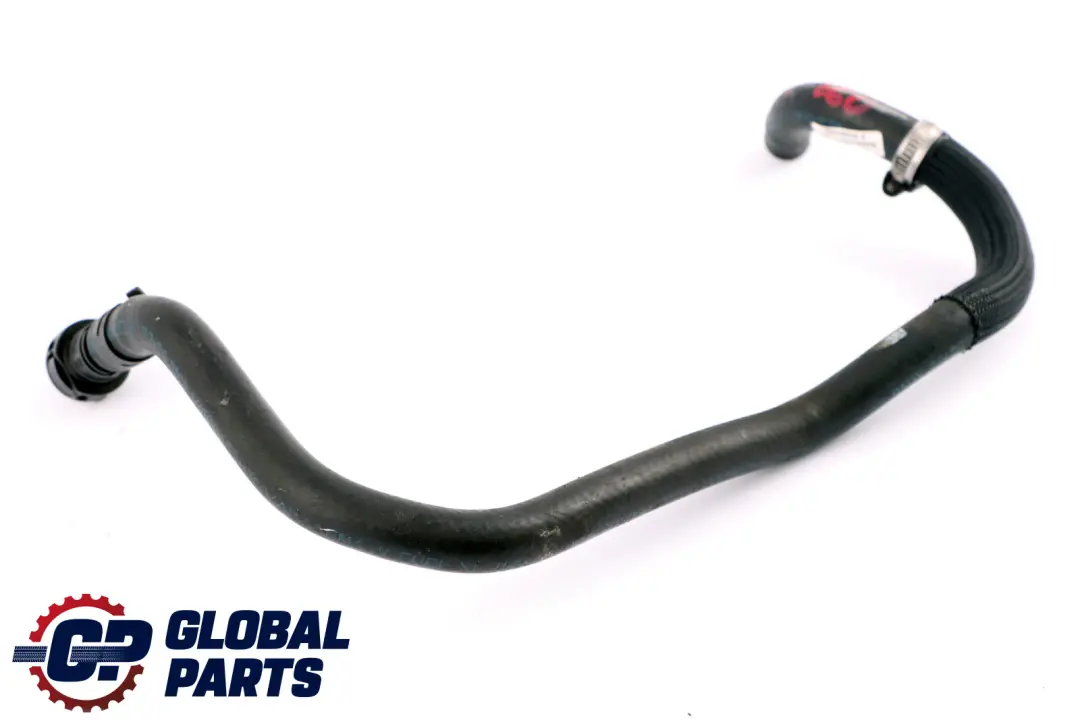

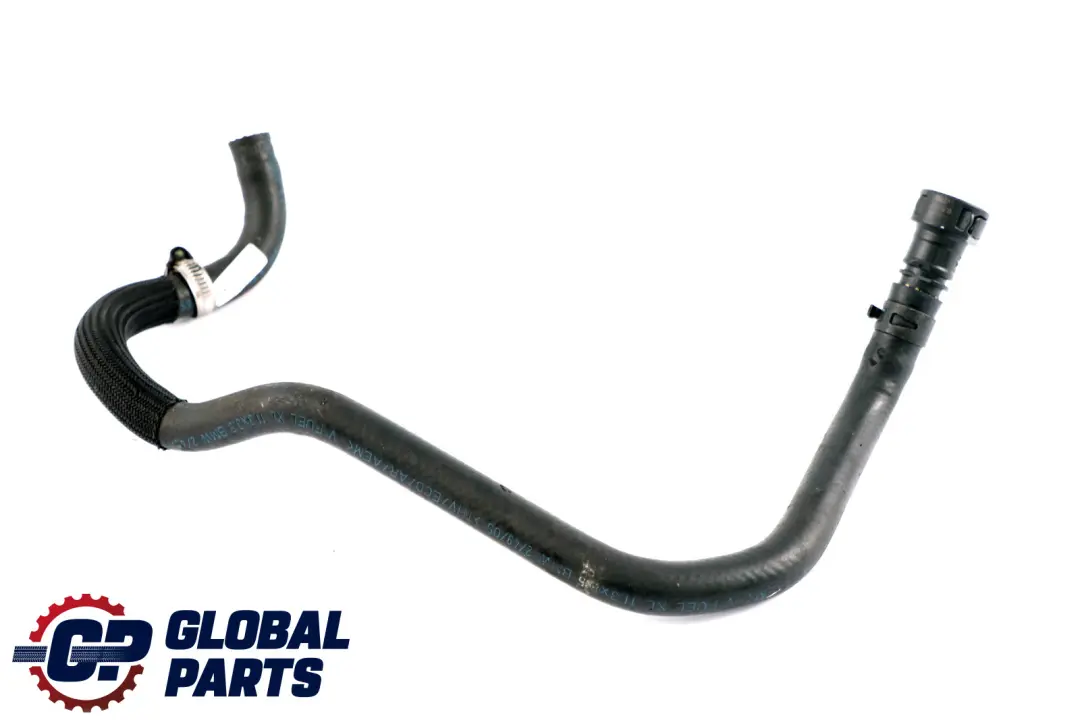

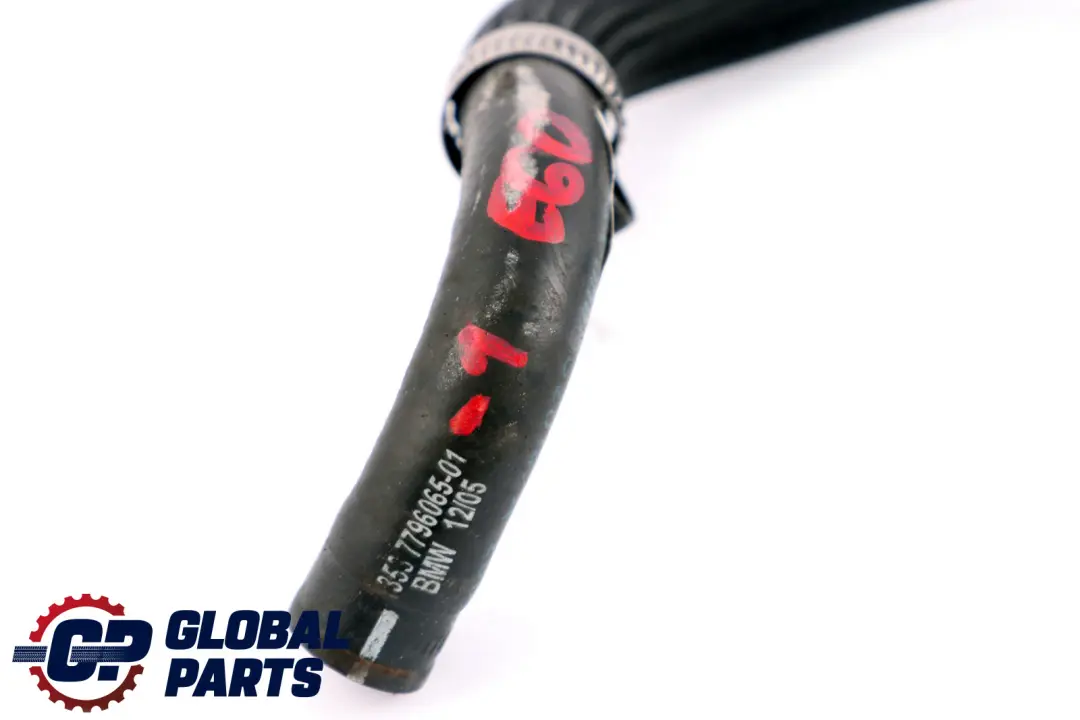

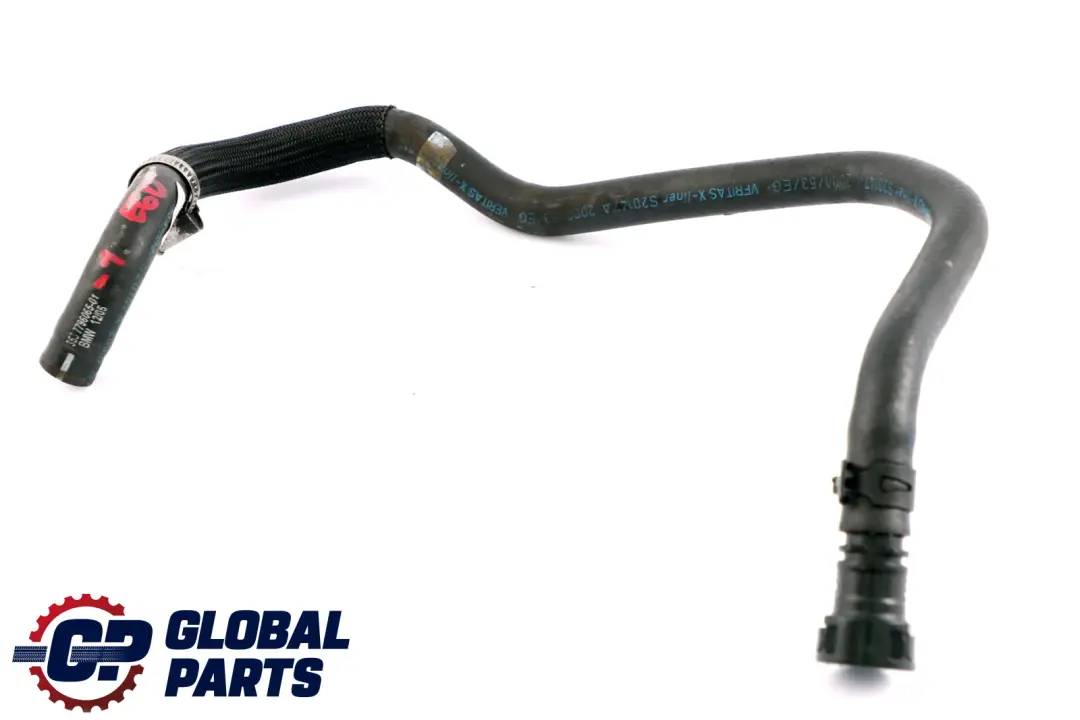

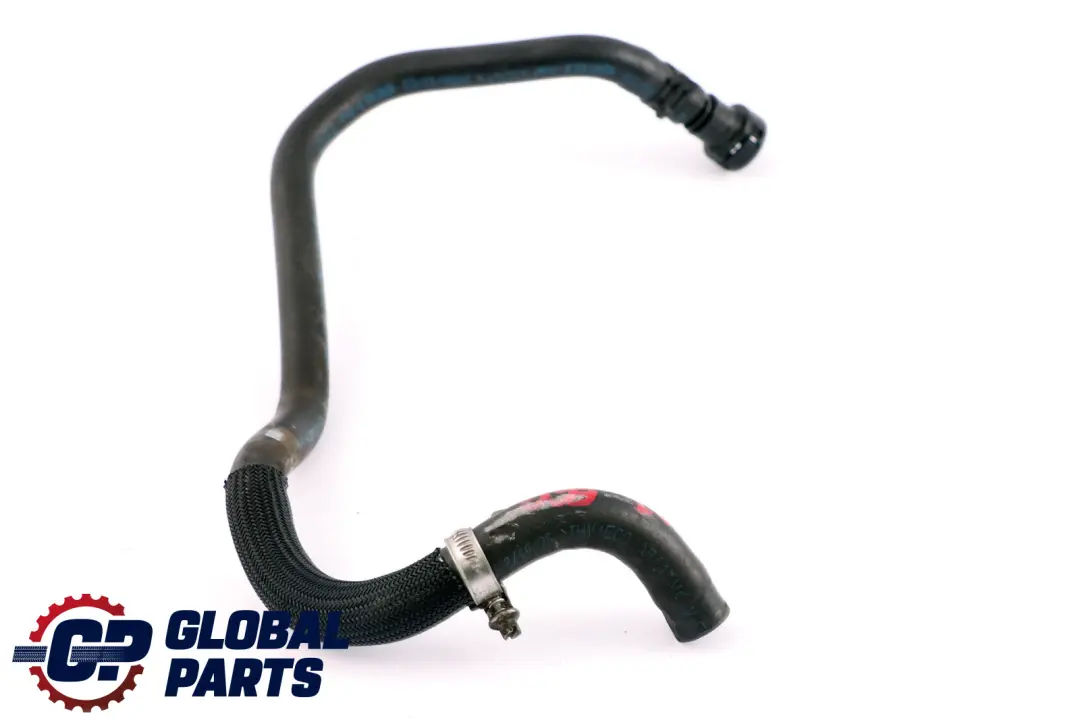

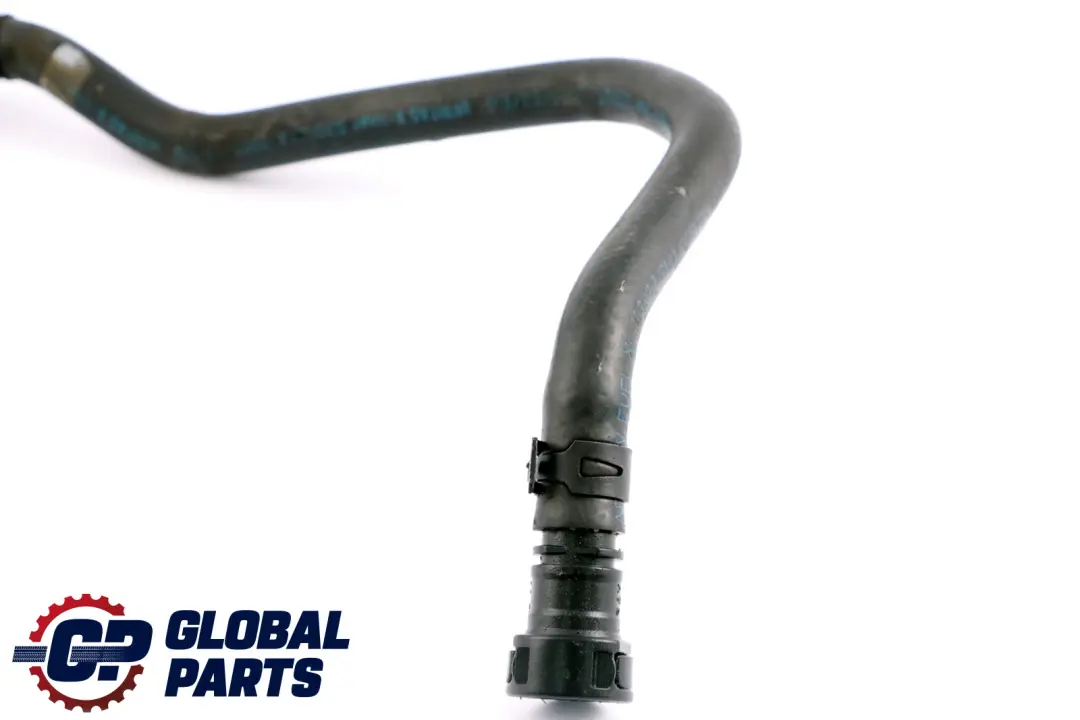

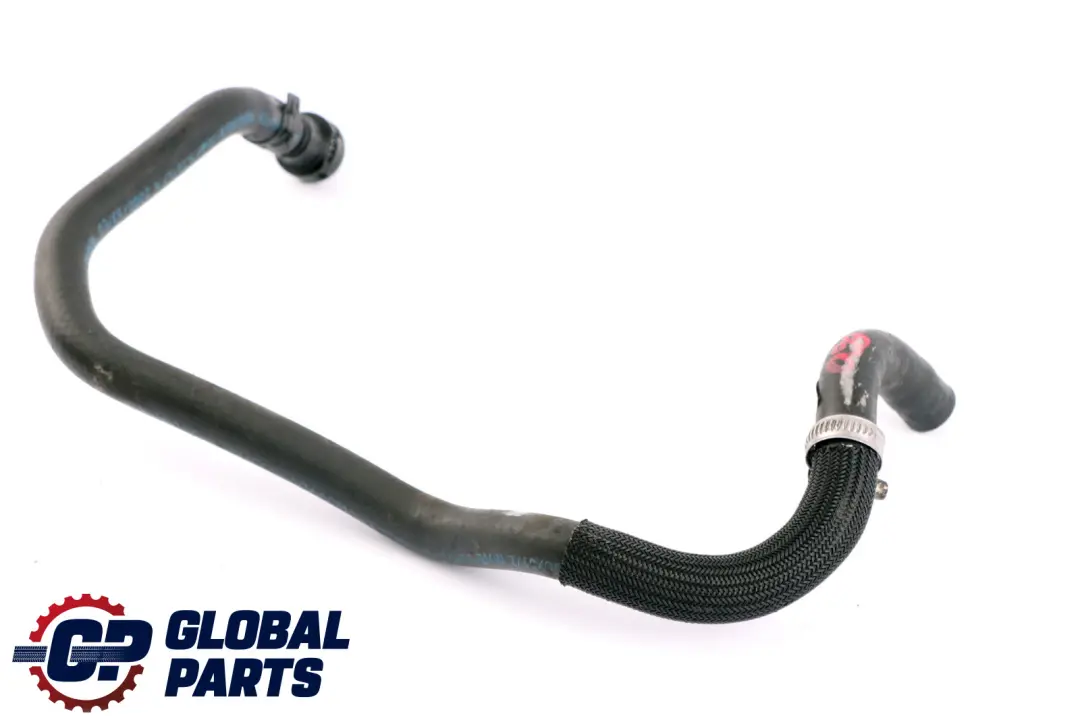

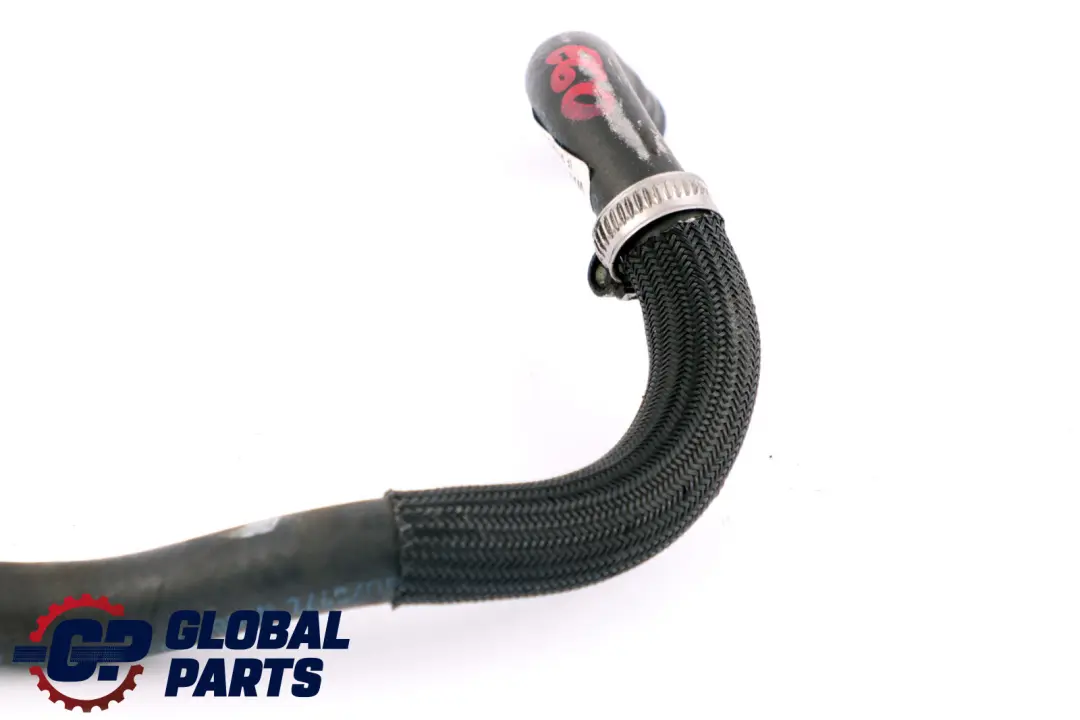

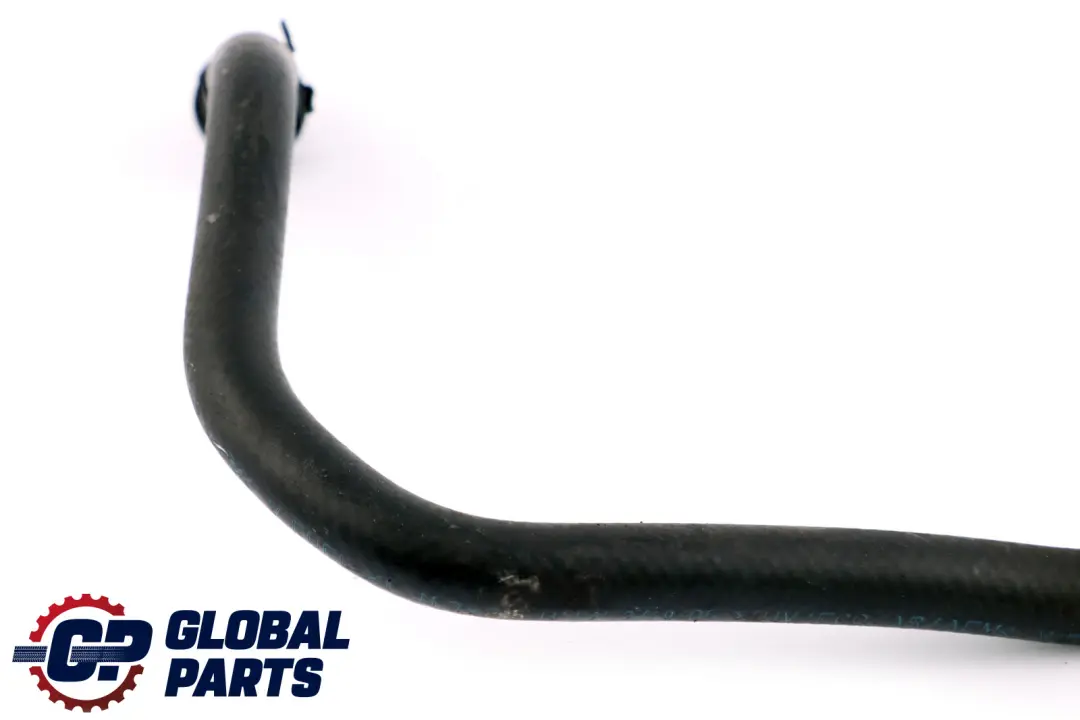

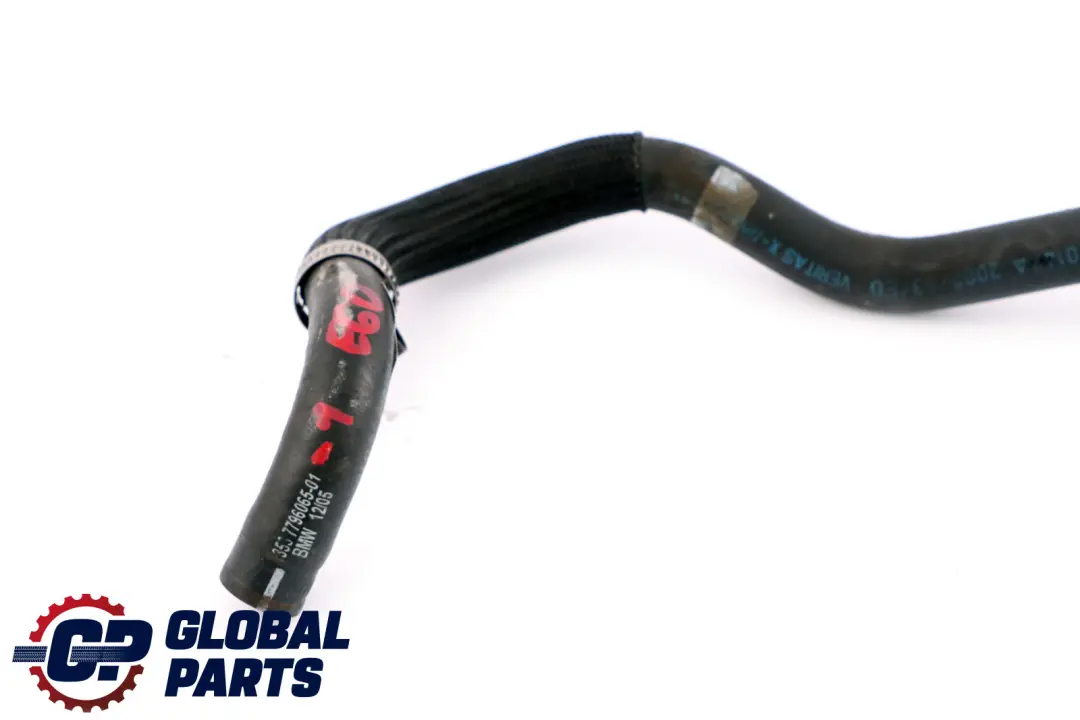

BMW 5 Series E60 E61 520d M47N2 Complete Fuel Return Line Diesel 7796065

BMW 5 Series E60 E61 520d M47N2 Complete Fuel Return Line Diesel is a complete, used fuel return line designed for the M47N2 diesel engine in the 5 Series E60/E61. This component belongs to the Lines, hoses and pipes group and is a key part of the fuel supply system, responsible for the safe return of excess diesel fuel to the tank. A properly selected return line helps maintain stable operating parameters for the 520d unit and reduces the risk of leaks in the fuel system.

Specifications and technical data

• SKU: 7796065-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7796065
• Substitutable numbers: 13537797293, 7797293, 13537796065, 7796065
• Fuel type: Diesel
• Category: Hoses, Lines & Pipes

Purpose and function in the fuel system

The complete fuel return line in the M47N2 diesel engine is responsible for draining unused fuel from the fuel rail and injectors back to the tank. A properly functioning line:

• stabilizes pressure in the common rail system,
• reduces fuel heating in the circuit,
• minimizes the risk of air entering the system,
• prevents diesel leaks in the engine compartment.

As a result, the 520d unit maintains proper operating culture, and the engine control unit can precisely control the injection dose across the full load range.

Construction and fitment for BMW 5 Series E60/E61 520d

The presented fuel return line has been designed specifically for the engine compartment geometry of the BMW 5 Series E60/E61 with the M47N2 unit. This means:

• proper routing of lines relative to the cylinder head, fuel rail, and accessories,
• matched mounting points for factory brackets,
• maintenance of the correct bending radius, which reduces stress and the risk of cracks.

Such fitment facilitates installation and allows for maintaining the factory routing of the lines, which is important for both safety and service convenience.

Benefits of using an original BMW line

Choosing an original element from the Lines, hoses and pipes group for a BMW brings a number of practical advantages:

• compliance with the factory specification of the diesel fuel system,
• certainty of compatibility with M47N2 engine accessories,
• reduction of the risk of leaks resulting from inaccurate fitment of aftermarket replacements,
• easier diagnostics of potential faults in the future.

For users who want to keep their car in a configuration as close to factory as possible, using such a line is a technically safe and predictable solution in operation.

Condition, verification, and selection of parts

The item is used, which in practice means that before installation, it is worth paying attention to the condition of the quick-connectors, flexible sections of the line, and any signs of previous repairs. Proper selection of the fuel return line for a specific 520d version should always take into account the OEM number and available interchangeable numbers to avoid compatibility issues.

If you want to deepen your knowledge on how to flawlessly match used components to your car and avoid misguided purchases, use the expert advice described in the article how to professionally select used car parts.

Expanding the fuel system in the BMW 5 Series

If you are planning a comprehensive repair or upgrade of the engine area in your BMW and need other elements from the same group, such as supply lines, flexible fuel hoses, or metal guide pipes, check the available parts in the BMW lines, hoses and pipes category.
