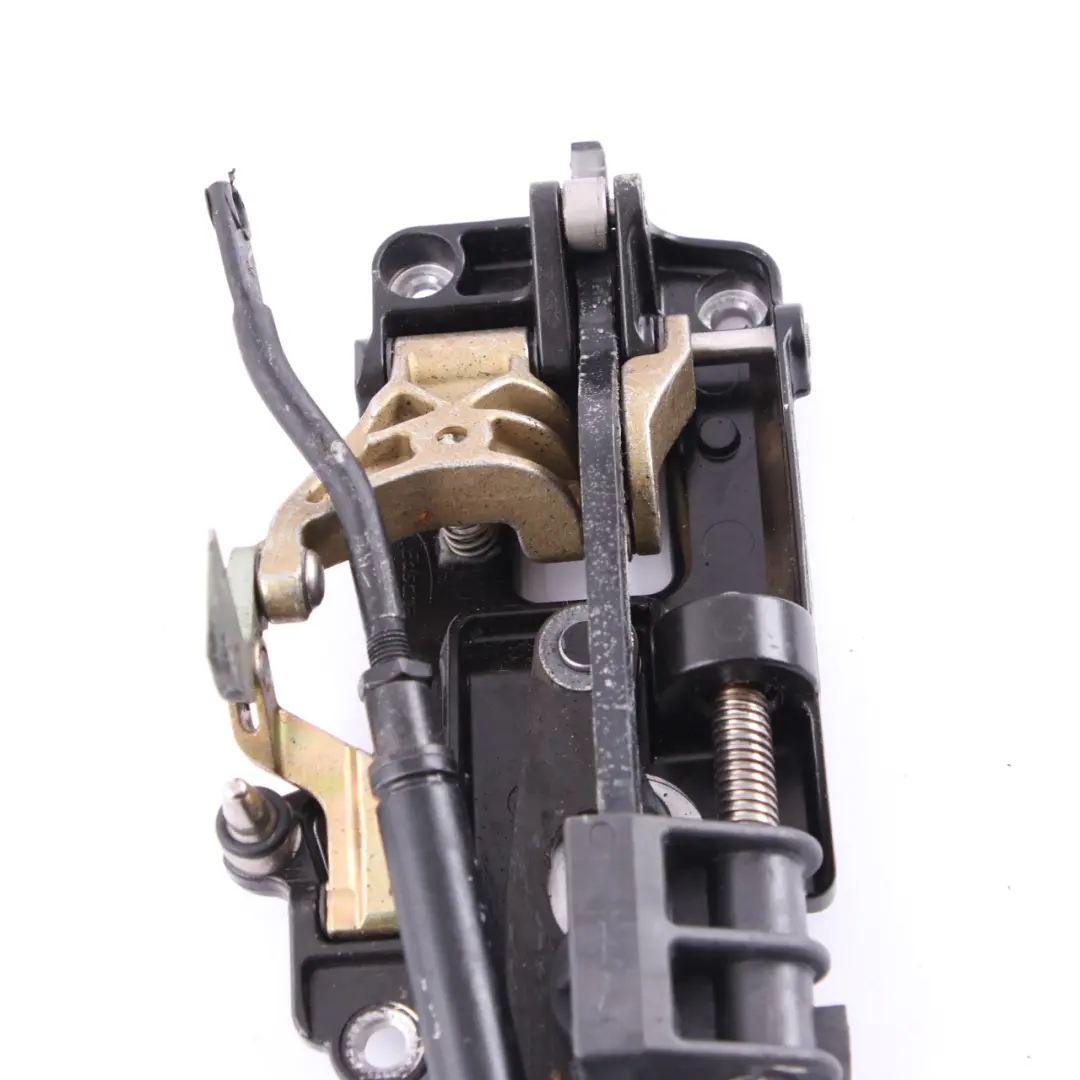

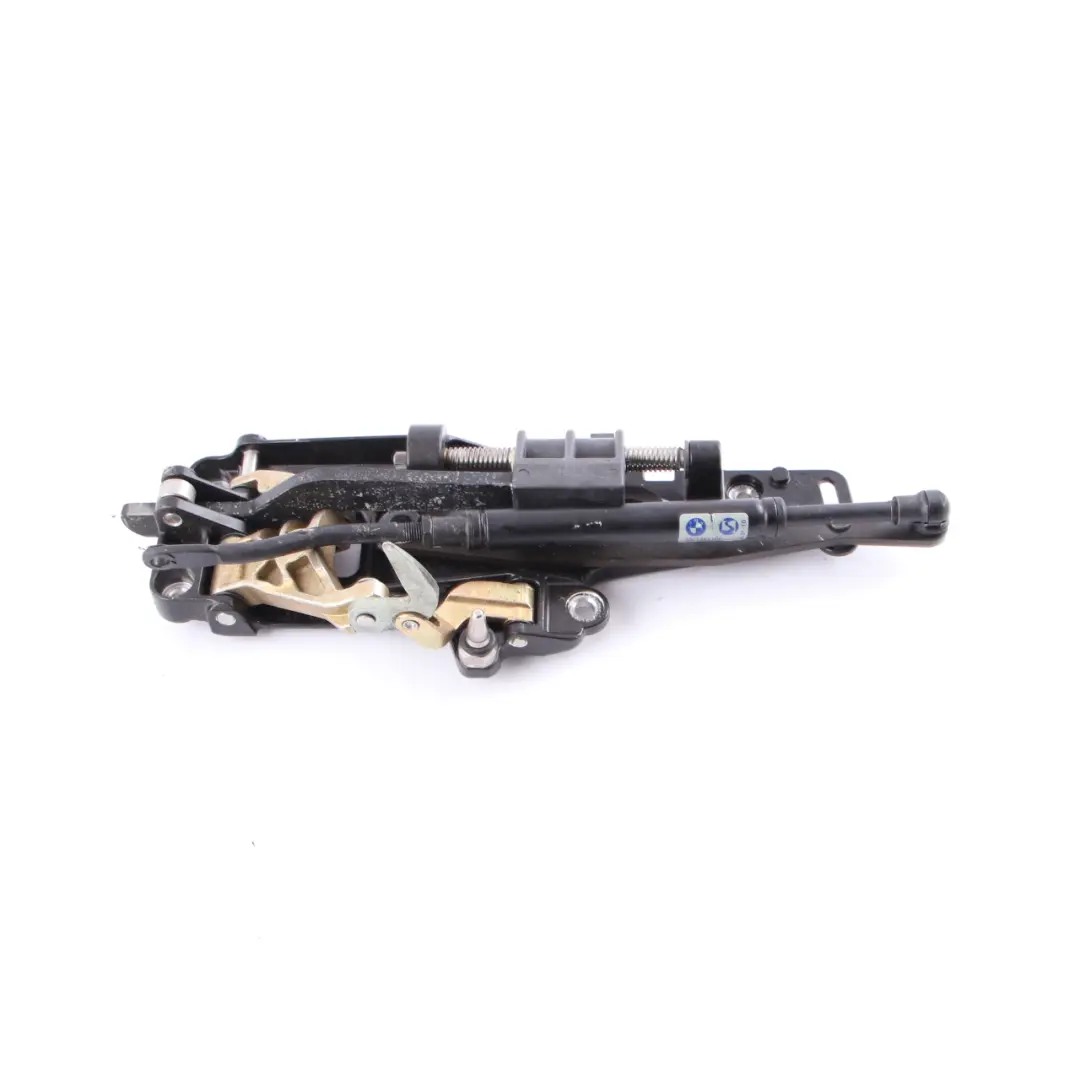

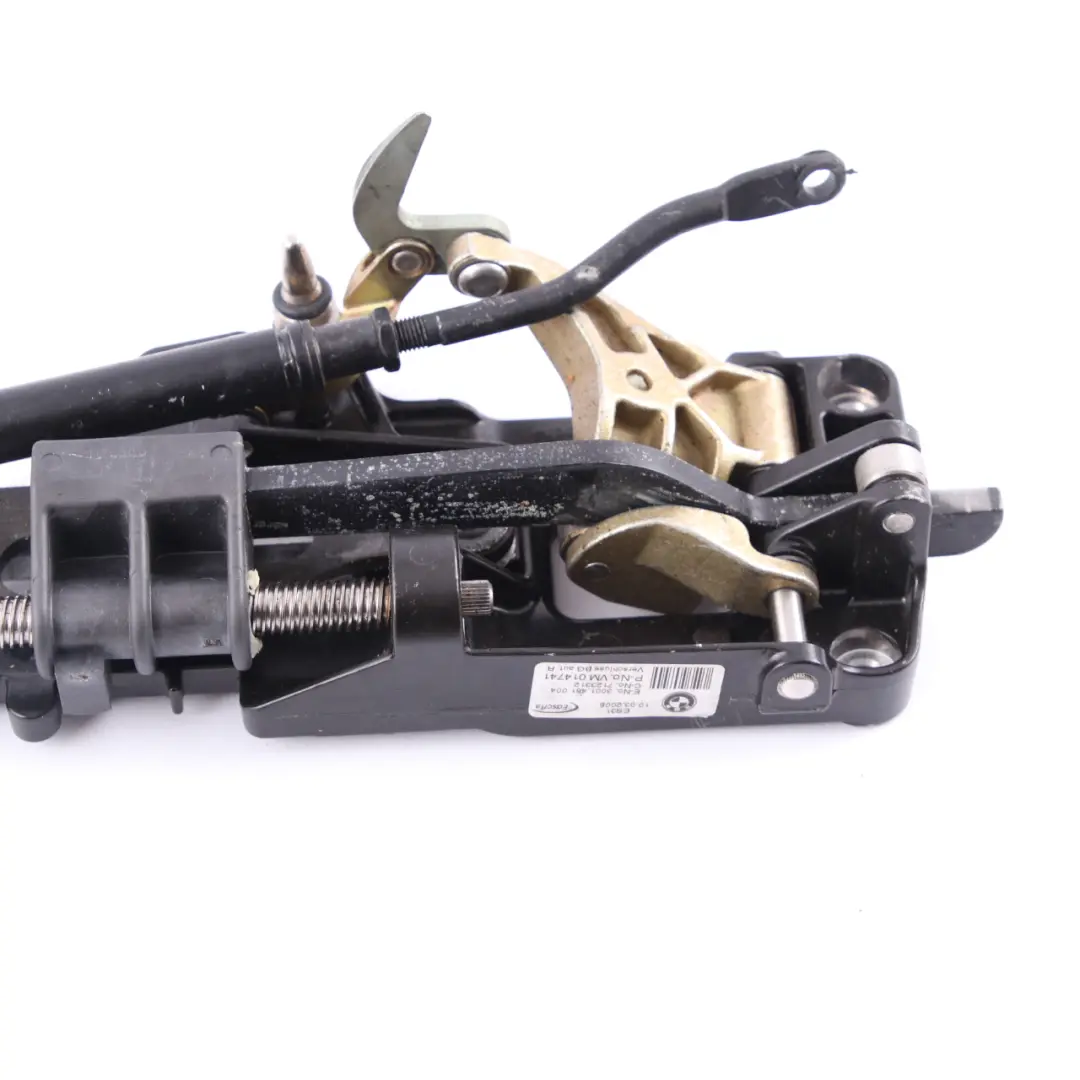

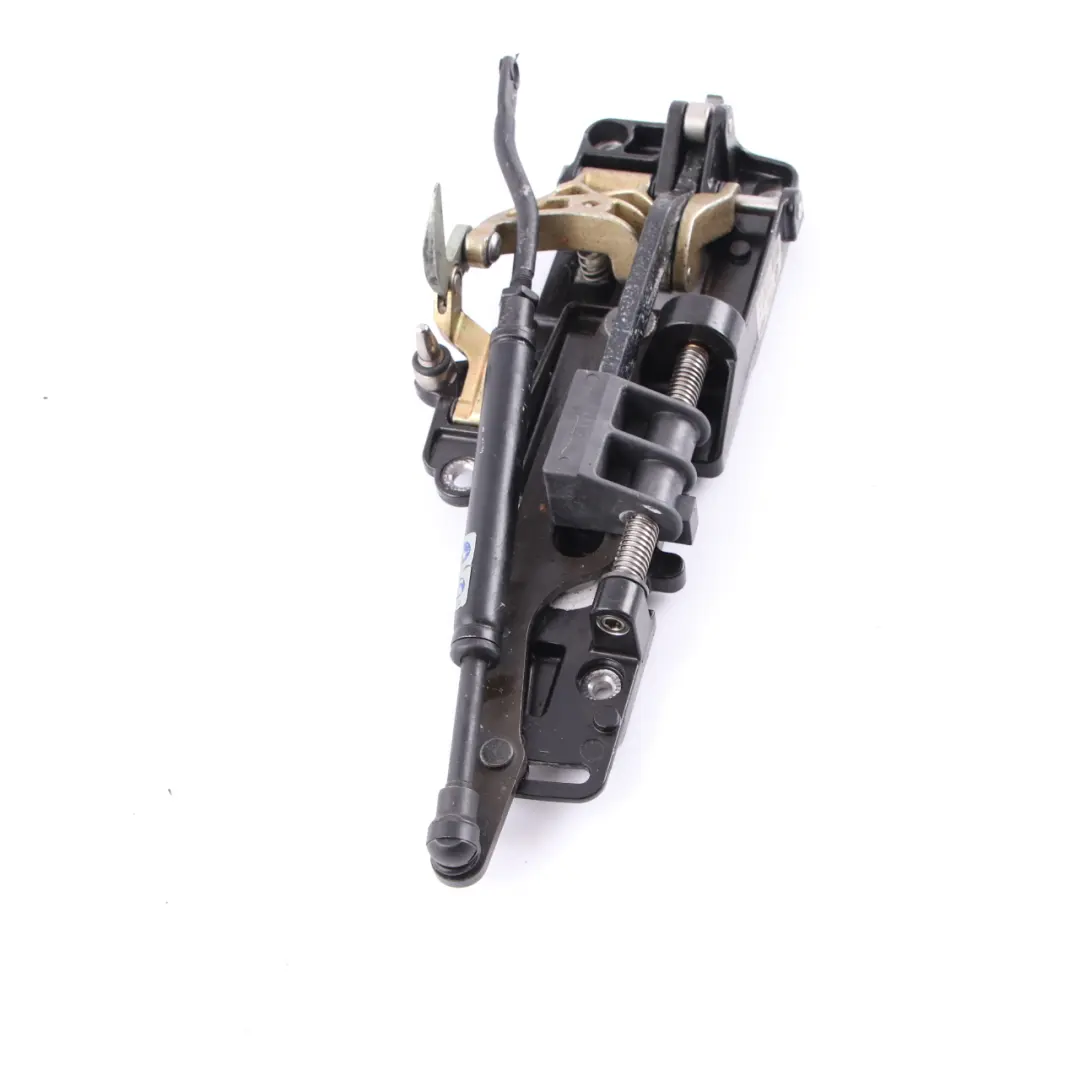

BMW E64 Roof Hinge Folding Soft Top Frame Right O/S Hydraulic Lock 7156986

BMW E64 Roof Hinge Folding Soft Top Frame Right O/S Hydraulic Lock is a precision component of the folding roof mechanism, designed for installation on the right side of the vehicle body. It is responsible for the stable guidance of the roof structure, the correct geometry of its operation, and secure locking, which is crucial for cabin comfort and sealing. Thanks to the use of an original BMW solution, this used part allows for a technically correct repair of the roof system without interfering with the vehicle's structure.

Specifications and technical data

• SKU: 7156986
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7156986
• Substitutable numbers: 54347156986, 7156986, 7123312
• Location on the vehicle: Right
• Category: Other Exterior Parts & Accessories

Purpose and function of the folding roof hinge

The folding roof hinge in the BMW E64 operates in a demanding environment – it transfers loads resulting from the movement of the entire structure, maintains the correct position of the panels, and works in conjunction with actuators and guides. The component on the right side of the vehicle is responsible for:

• controlled guidance of the roof segments during opening and closing,
• maintaining the correct axis of rotation and mechanism geometry,
• reducing play, knocking, and unwanted stress in the structure,
• cooperation with other components of the folding roof system.

Selecting the correct hinge for the right side is important not only for the proper operation of the roof but also for the durability of the entire mechanism and maintaining the comfort of using the convertible.

Compatibility and mounting parameters

The hinge in question has been designed specifically for the BMW E64 series, which ensures factory-fit to the body structure and compatibility with the original folding roof system. The location on the right side of the vehicle eliminates the risk of errors when selecting parts and facilitates service work.

The original nature of the component means that:

• mounting points coincide with factory holes in the body and roof frame,
• there is no need for modifications, welding, or drilling of structural elements,
• the mechanism works with existing actuators, arms, and guides.

Characteristics of the used BMW component

The presented folding roof hinge is an original BMW part in used condition, which allows for maintaining compliance with the vehicle's factory specifications while optimizing repair costs. A used component of this type is particularly valuable in the case of roof mechanisms, where manufacturing precision and fitment to a specific model are essential.

Choosing an original, used hinge instead of a replacement promotes:

• maintaining the original operating characteristics of the mechanism,
• preserving compatibility with other system components,
• reducing the risk of problems with roof adjustment and locking.

Application in service and restoration of the BMW E64

In service practice, the folding roof hinge on the right side is most often replaced due to symptoms such as uneven roof lifting, noticeable play, noises during mechanism operation, or problems with full closing. Using the appropriate component allows for restoring the correct kinematics of the system without the need to interfere with the control electronics.

For workshops specializing in the BMW brand and users who care about maintaining the original vehicle construction, BMW E64 Roof Hinge Folding Soft Top Frame Right O/S Hydraulic Lock is a practical solution for repairs of the convertible roof mechanism, especially in vehicles used intensively or after previous mechanical damage.

If you are planning a comprehensive repair or modernization of the folding roof area in your BMW and need other elements from the same group, such as arms, guides, or mounts, check the available parts in the Other BMW category.
