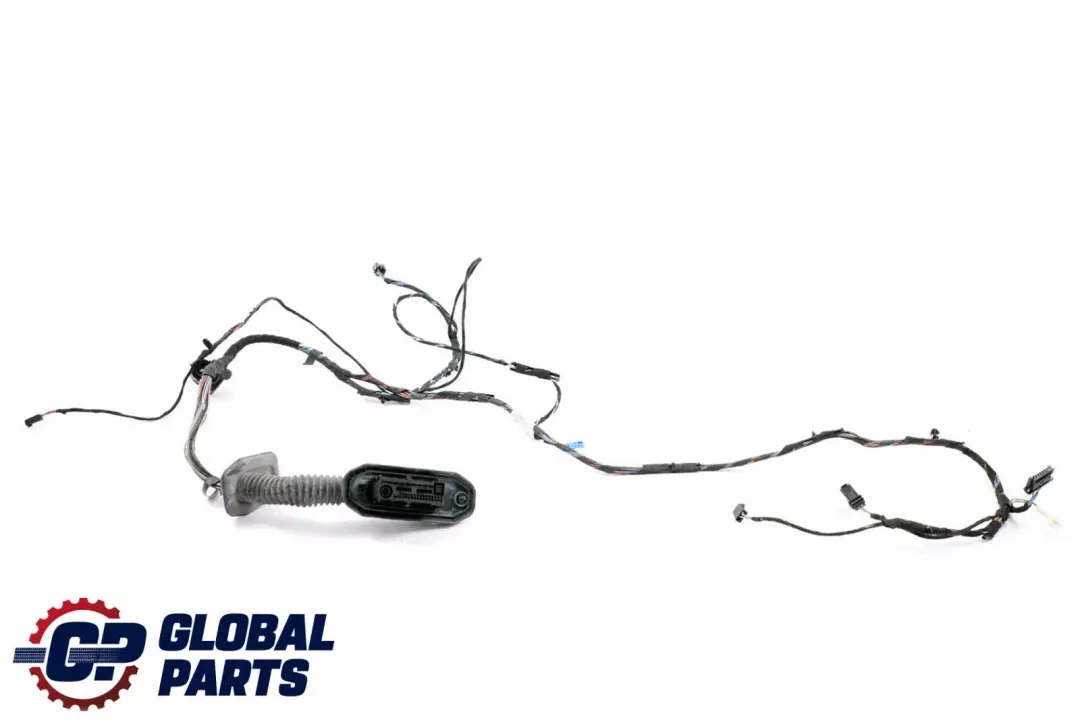

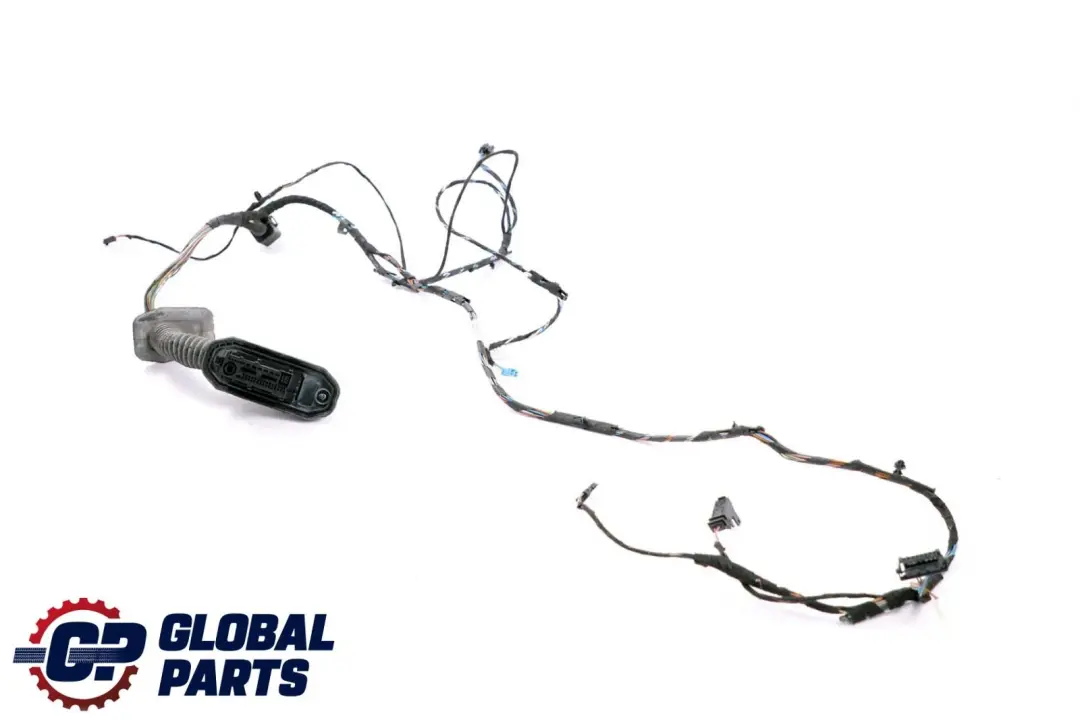

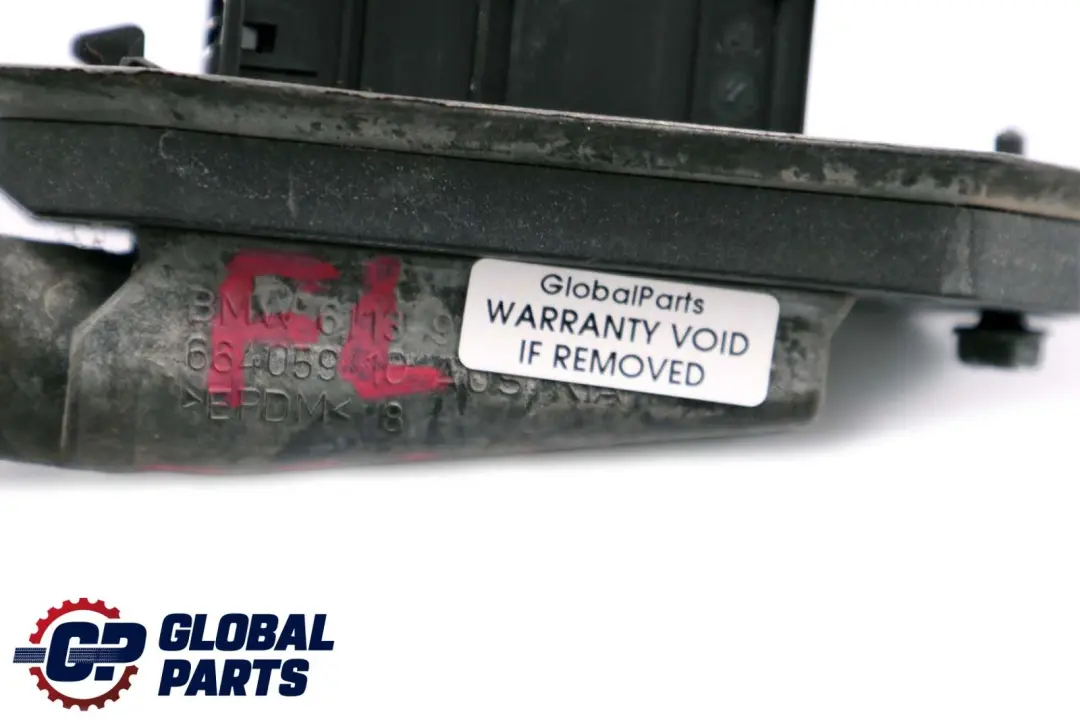

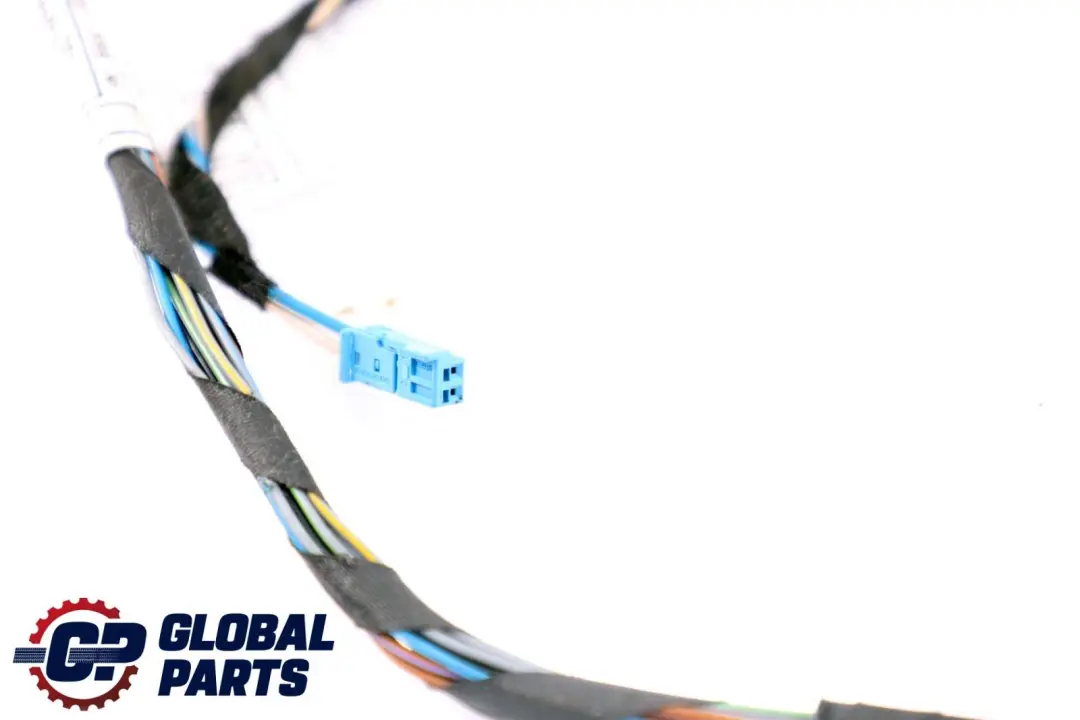

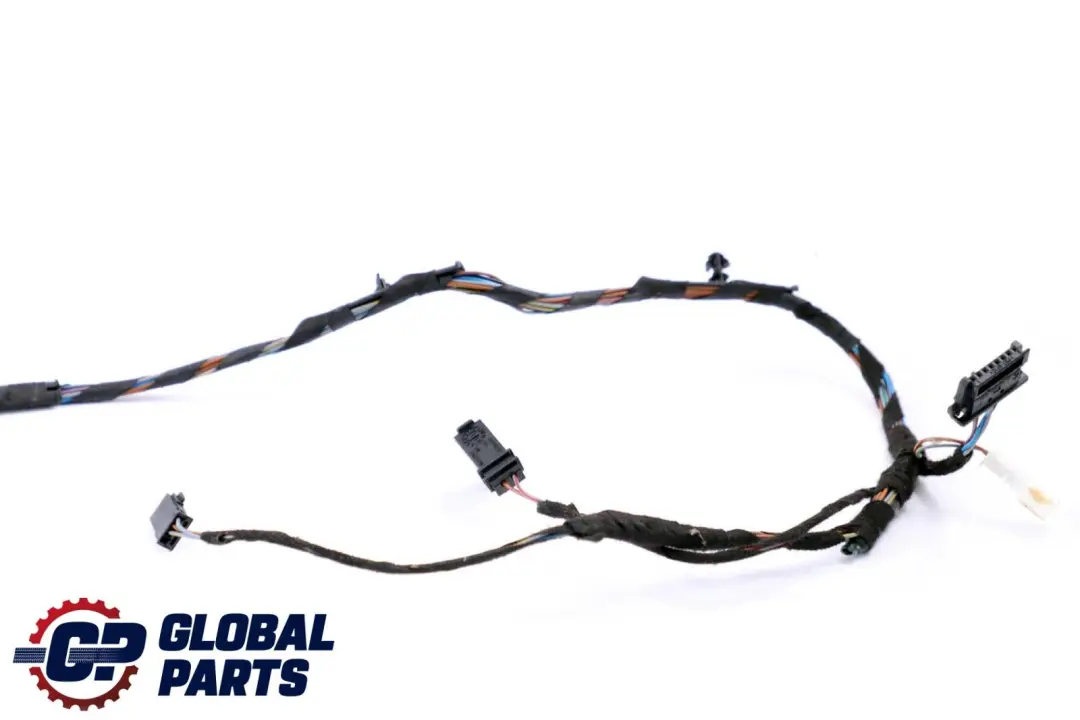

BMW X5 X6 E70 E71 Front Door Wiring Loom Harness Passenger Side 9229840

BMW X5 X6 E70 E71 Front Door Wiring Loom Harness Passenger Side is an original electrical installation component designed for installation in the front body section on the passenger side. As part of the Wires, harnesses and connectors group, it ensures a proper electrical connection between the body modules and door equipment, supporting the stable operation of comfort and safety systems. Using this OEM BMW component allows for a technically correct repair without the need for modifying the installation.

Specifications and technical data

• SKU: 9229842
• Mark: BMW (Genuine OE)
• Condition: Used

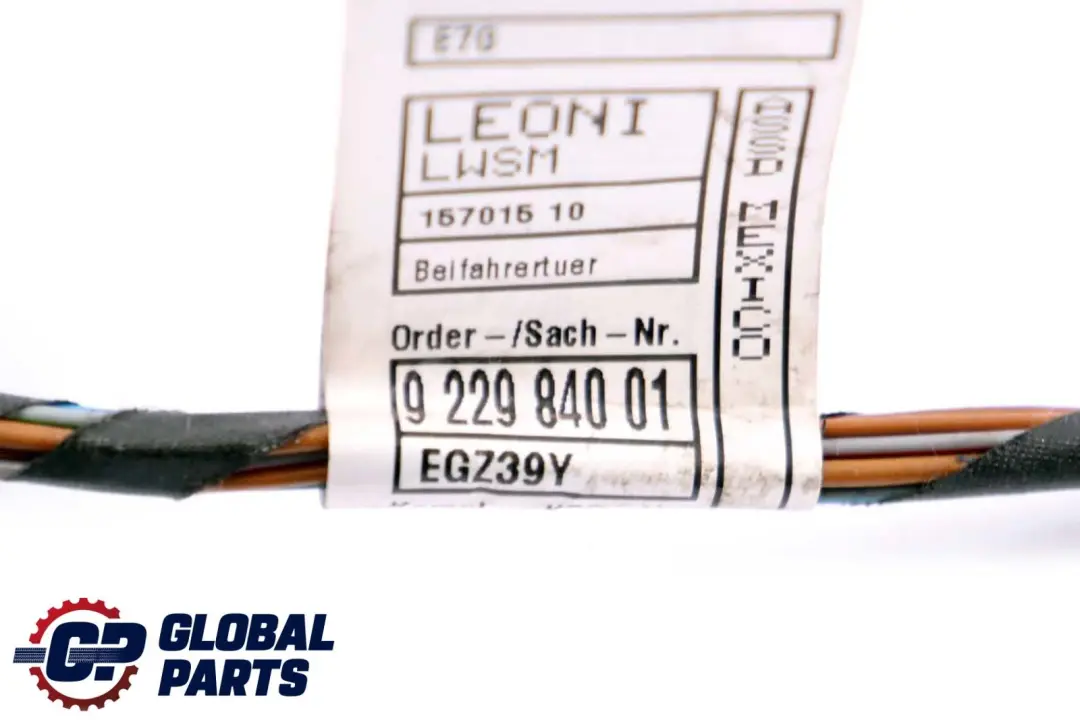

• OEM Part Number: 9229840

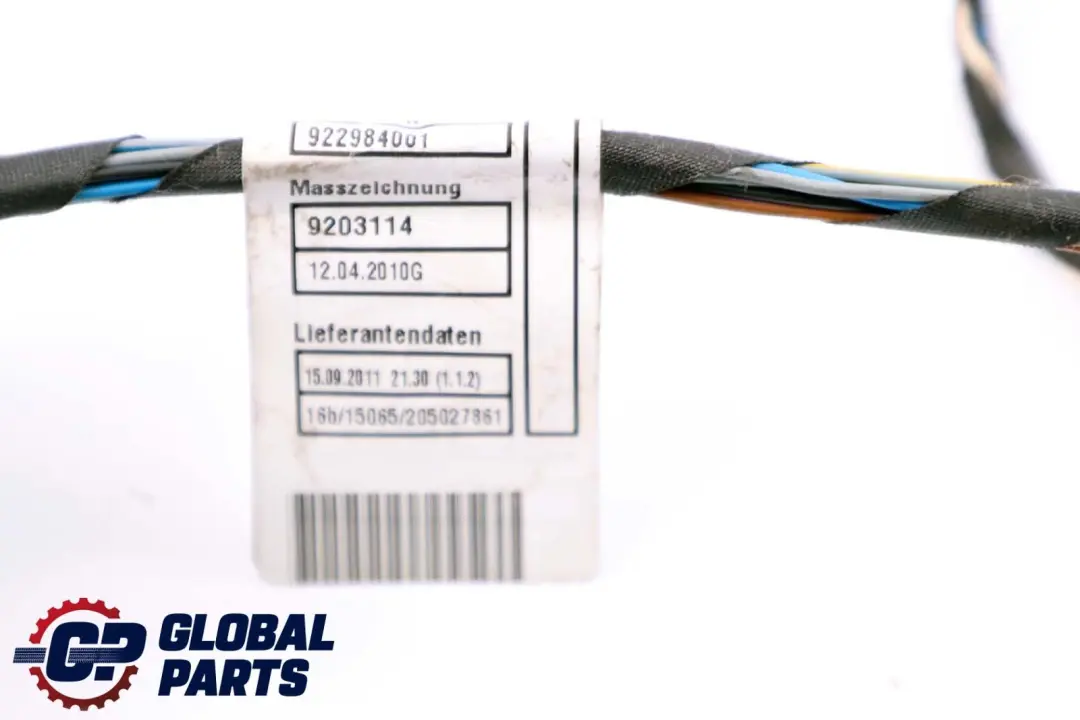

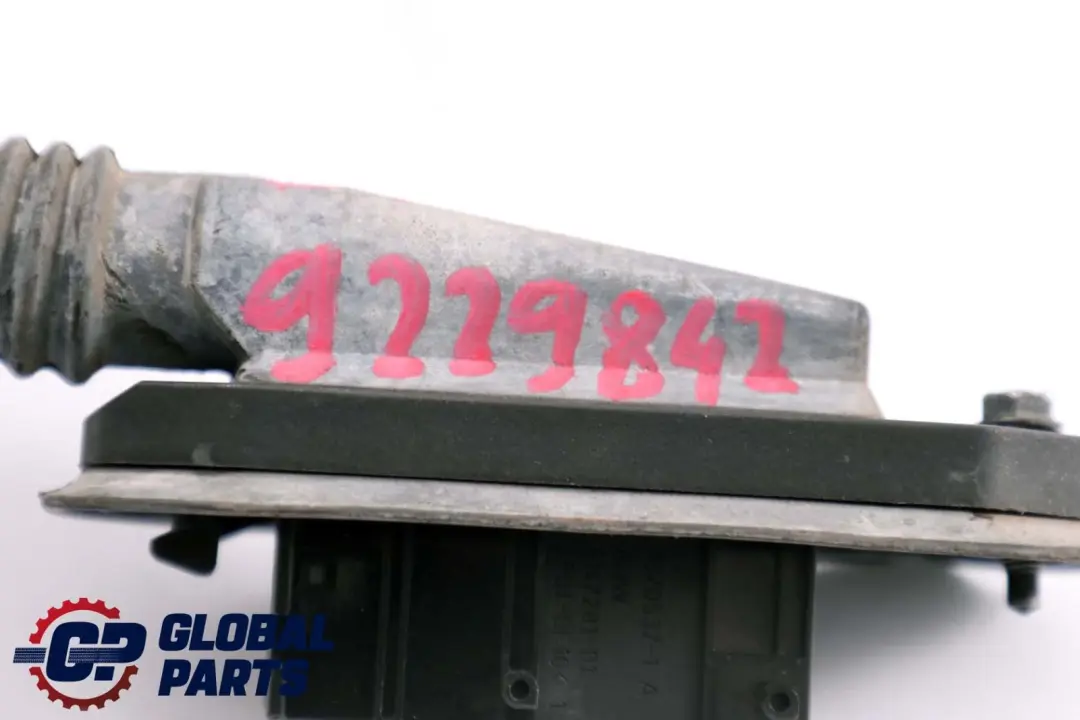

• Substitutable numbers: 61129229842, 9229842, 9229840, 9203114, KZ
• Location on the vehicle: Front
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented door wiring harness is designed for installation in the front body zone, on the passenger side, in BMW X5 and X6 E70/E71 generation models. It is responsible for transmitting signals and power between the vehicle's main installation and components located in the door, such as window, mirror, or lock controls, according to the specific vehicle configuration.

Thanks to factory-standard cable routing and matched connectors, the harness allows for maintaining the original installation path, which reduces the risk of mechanical damage and electrical interference during daily operation.

Construction and installation fitment

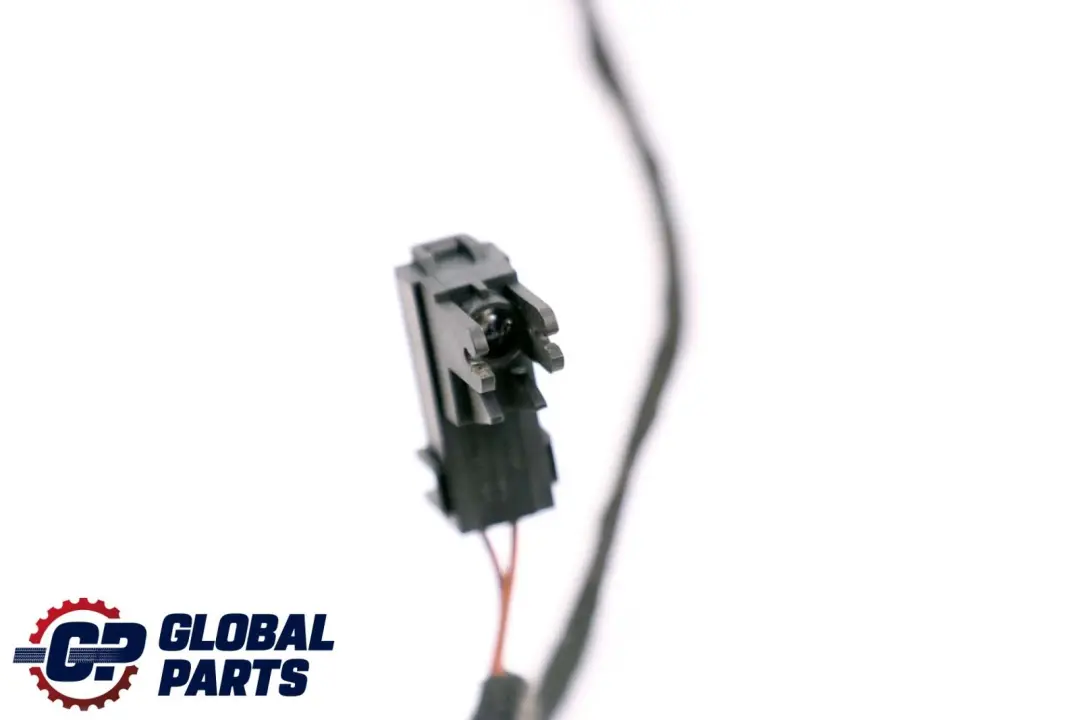

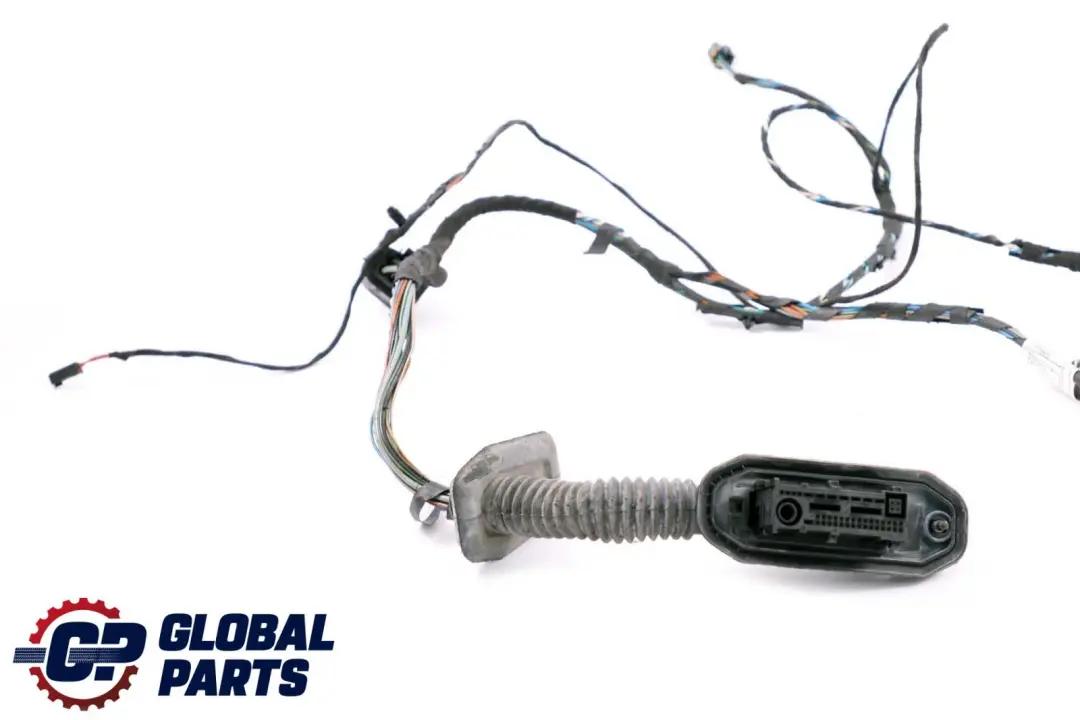

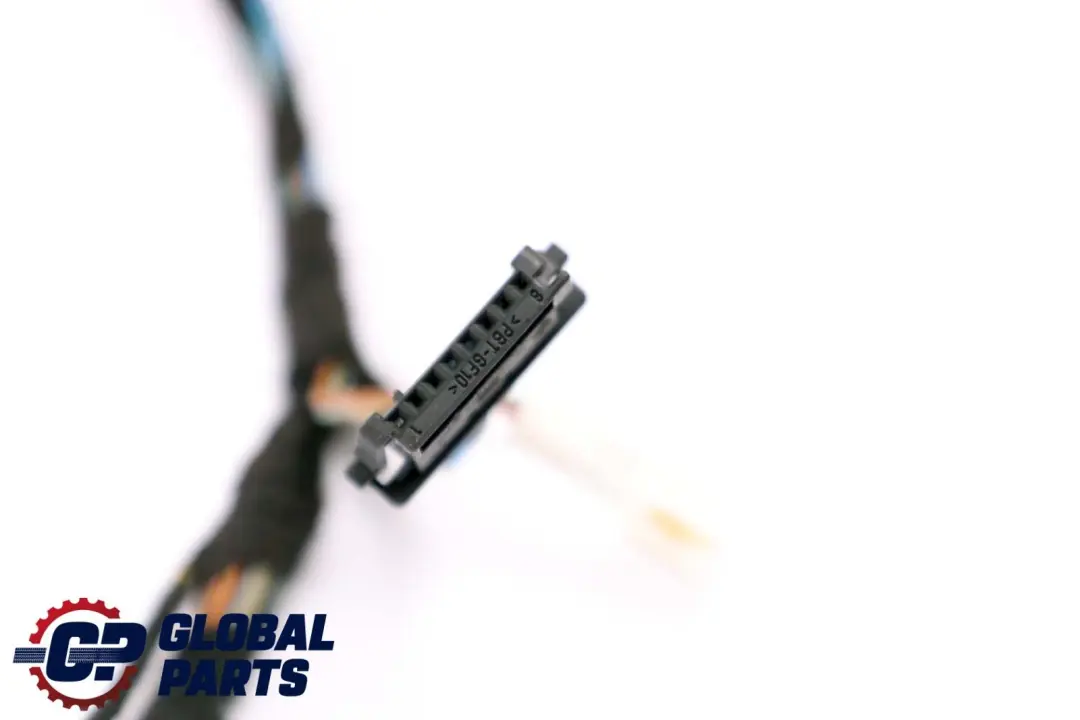

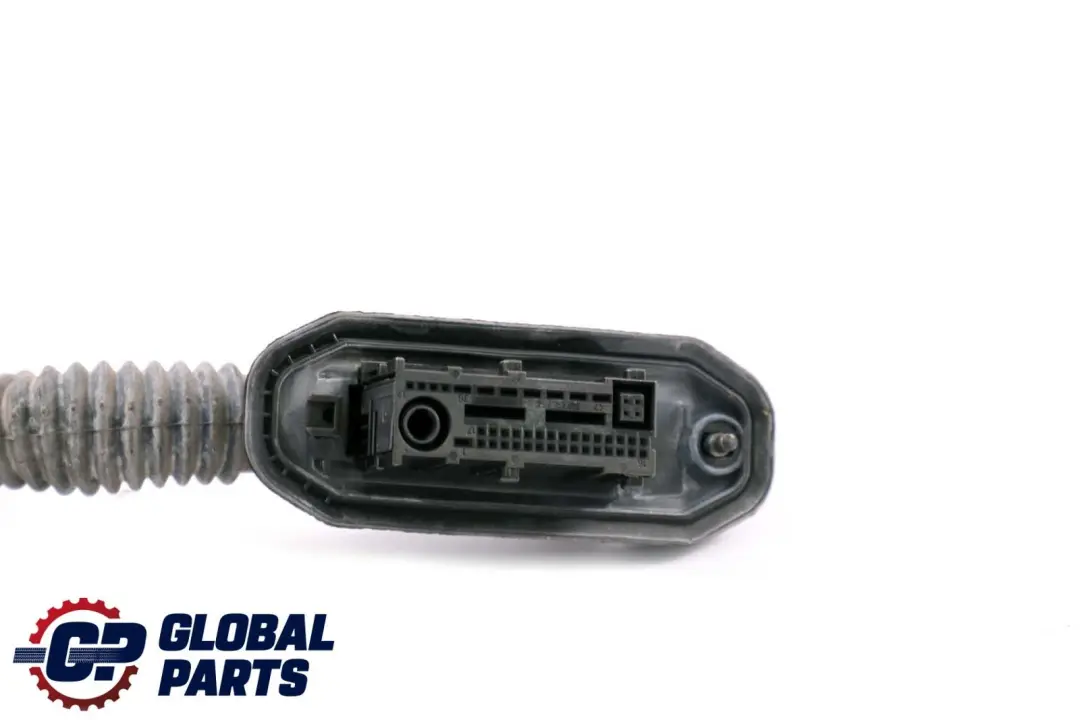

As an element from the Wires, harnesses and connectors category, the door wiring harness contains a set of wires with appropriately selected cross-sections and factory connectors compatible with the BMW installation. The connectors used are prepared for direct connection to the door modules and equipment, which eliminates the need for soldering or creating adapters.

Original mountings and cable lengths facilitate routing the installation through factory mounting points, which:

• reduces mechanical stress on the wires,
• decreases the risk of chafing in door grommets,
• facilitates service and potential electrical diagnostics.

Benefits of using an original BMW harness

Using an original door wiring harness in a BMW X5/X6 E70/E71 brings a number of practical service and operational benefits:

• Full compatibility with the factory installation – connectors and wiring layout are adapted to the electrical architecture of the specific model.
• Stable operation of comfort systems – proper electrical connections promote the correct functioning of window, mirror, and lock controls.
• Reduced interference with the installation – no need to modify universal harnesses reduces the risk of subsequent faults.
• Better diagnostics – maintaining the original schematic facilitates work with BMW service documentation.

A used OEM component is a reasonable choice for repairs where maintaining compliance with factory specifications while optimizing costs is important.

Installation zone and service application

The harness is intended for installation in the front part of the vehicle, in the passenger door, which is important when selecting parts based on the body side and equipment configuration. It is suitable both for replacing a damaged installation after a collision and for repairs resulting from wire chafing in grommets or problems with electrical communication in the door.

Before installation, it is recommended to compare the connectors used and the harness routing with the removed part to confirm compatibility with the specific vehicle equipment version.

Support with selection and additional information

When selecting a door wiring harness for a BMW, it is worth paying attention to OEM markings and interchangeable numbers to ensure full compatibility with the given car configuration. In case of doubt, installation diagrams and manufacturer service documentation can be helpful.

If you are planning a comprehensive repair or upgrade of the front door zone in your BMW and need other elements from the same group, such as additional harnesses, connectors, or cable sections, check the available parts in the BMW Wires, harnesses and connectors category.

To better match used electrical components to your car and avoid mistakes when choosing OEM markings, it is worth using the practical expert tips available in the article No more bad purchases! How to professionally select used car parts.
